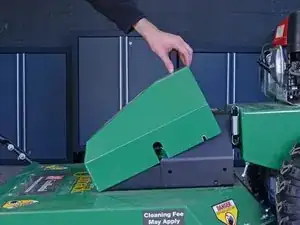

Belt Deck Cover
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Engine: Honda GX390
Background and Identification
The Billy Goat Brush Cutter BC2600HHF (2015) is a hydrostatic-drive rough cut mower.
It has a cutting width of 26 inches and is designed to cut brush on hilly terrain for relatively small areas. It features an 11.7-horsepower or 388cc Honda GX3909 commercial-grade engine designed for improved efficiency. It can cut brush, bramble, vines, tall grass, berries, and small trees. The Brush Cutter is designed to cut brush up to six feet tall and saplings up to two inches in diameter. It can cut almost an acre of brush per hour.
The Billy Goat Brush Cutter includes a fully-automatic hydrostatic transaxle that locks a spinning wheel for positive traction. This feature is meant to support increased traction on hills and in uneven or wet conditions. The Brush Cutter also features wider tractor tires for more grabbing and pulling power in various conditions. The pivoting brush deck is designed to hug the ground, and the cutter can perform on up to 20-degree slopes. The Brush Cutter also has a rubberized rear deck trim to provide easier stump clearance when in reverse. Drivers can switch from forward to reverse from the handles of the Brush Cutter without shifting.
When using the Billy Goat Brush Cutter, it is recommended to use protective glasses and earplugs for personal safety. Users can also use Honda fuel stabilizers to increase the performance of the Honda engine.
Technical Specifications
Grade: Semi-Pro
Surface Area: Small Home
Width: 26 Cutting Inches
Style: Rough Cut
Terrain: Hilly
Engine: Honda GX390
- Starting System: recoil start
- Engine Cycle: 4-cycle
- HP: 11.7 HP
- CC: 388 CCs
- Fuel Tank Size: 0.75 gallons
- Engine Cylinders: 1 cylinder
- Oil Filter: No
- Torque: 19.5 lbs
- Consumer Engine Warranty: 3 years
Deck:
- Cutting Options: rear discharge
- Deck Material: steel
- Deck Construction: welded
- Spindle Material: steel
- Blades: 1 blade
- Cutting Width: 26 inches
- Cutting Height: 3.75 inches
Drive:
- Speeds: variable
- Maximum Speed: 2.8 MPH
- Maximum Reverse Speed: 1 MPH
- Drive Wheels: rear wheels
- Transmission Type: hydrostatic
- Drive System: self-propelled
Accessories:
- Rear Bagger: no
- Engine Guard: no
- Hour Meter: no
- Arm Rests: no
- Front Bumper: included
- Mulcher Kit: no
- Headlights: no
Wheels:
- Rear Tire Size: 16 x 6.5 inch
- Tire Type: pneumatic wheels
Overview:
- Weight: 317 lbs
- Consumer Warranty: 1 year
- Commercial Warranty: 1 year
- Product Length: 83.0 inches
- Product Width: 31.0 inches
- Product Height: 48.0 inches
