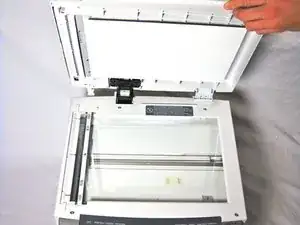

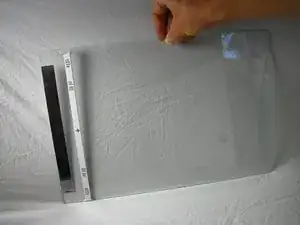

Replace Scanner Glass
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Troubleshooting
For more information regarding common troubleshooting issues click here.

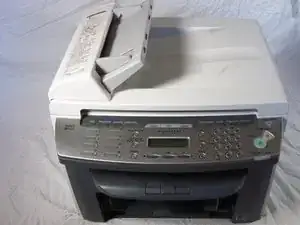

Background and Identification
Canon’s imageCLASS MF4350d, released September 22, 2008, has duplexing capabilities for printing, copying and receiving faxes. It was designed with office efficiency in mind to enhance productivity. With the ability to print up to 23 pages-per-minute, it vastly surpasses its competitors in output rate. It can also transmit documents with its Super G3 Fax at approximately 33.6 Kbps. The MF4350d also uses the Canon Single Cartridge System. This system combines the toner and drum for superior image quality and replacement convenience.
Specifications
Printer
Printing Method: Monochrome Laser
Toner Compatibility (for Laser MFP)
Canon Cartridge 104 (Yield: about 2,000 pages)
Copier
Type: Monochrome Laser
Zoom: 50-200% in 1% increments
First Copy Time: approx. 9 seconds
Reduction / Enlargement 50%, 64%, 78% / 129%, 200%
Scanner
Scanner Type: Color Contact Image Sensor (CIS)
File Formats: JPEG, PDF, TIFF, BMP
Fax
Modem Speed: Up to 33.6 Kbps (Super G3)
Memory Capacity: Up to 256 pages
Fax Resolution: Up to 203 x 391 dpi (super fine)
Fax Features
Remote RX, Dual Access, two-sided output
OS Compatibility:
-Windows® 7, Vista, XP, 2000
-Mac® OS X 10.3.9 & up,
-Linux (print only)
Dimensions
(W x D x H) 15.4" (W) x 21.0" (D) x 17.9" (H)
Weight
Approx. 27.6 lbs. (without Cartridge)
General
Standard Interface USB 2.0 Hi-Speed3
Software Included
Canon drivers for Windows®, Document Management & OCR Software
Power Consumption
approx. 630W (Max), 3W (Energy Saver Mode)
