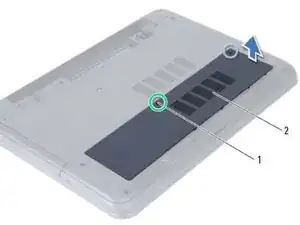

Battery
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Troubleshooting
For additional information regarding the Dell Inspiron 15R 5537, you can be directed to the device’s troubleshooting page here.
Background and Identification
Dell released the Inspiron 15R 5537 in June 2013 to compete with the more expensive gaming notebooks on the market. Dell offers three different versions of this laptop, which include an array of different CPU and GPU options. To identify which laptop you have, you can go to Dell’s website and input your service tag number located on the back of the laptop. The model number for your laptop is located in the battery compartment on the back of the laptop as well. Some features of the Inspiron 15R 5537 include a touch screen, CD drive, HDMI port, multiple USB ports, and 8.83 x 14.17-inch display.
Specifications
- Dimensions: 1.10 x 14.80 x 10.19in
- Weight: 5.51 lbs
- Capacity: Up to 16 GB, Speed - Up to 1600 MHz
- Display: 8.83 x 14.17 in, Diagonal - 15.60in
- Touchpad: 2.13 x 3.86in
- Ports: Two USB 3.0, One USB 2.0, One HDMI
- Audio: Two speakers, 2 watt speaker output, single digital microphone
- Video: Controller - Intel HD Graphics 5100/4200/4400 series (integrated), AMD Radeon HD 8670M (discrete), AMD Radeon HD 8850M (discrete). Memory - Shared system memory (integrated), Up to 2 GB (discrete)
- Camera: Still image - 0.92 megapixel, Video - 128- x 720 HD at 30 fps (max.)
- Storage: SATA Interface, One 2.5in hard drive, One 9.5mm SATA drive, DVD and Blu-ray supported
- Battery: 4-cell “smart” lithium ion 40Whr (Voltage - 14.80 VDC), 6-cell “smart” lithium ion 65Whr (Voltage - 11.10 VDC), Approx. life span - 300 discharge/charge cycles
- Power adaptor: 65 W, 90 W
- Communications: Ethernet - 10/100 Mbps Ethernet controller integrated system board, Wireless - WiFi 802.11 b/g/n, Bluetooth 4.0
Source: Dell Inspiron 15R 5537 Specs
