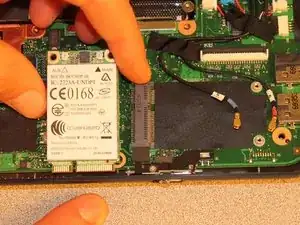

3G Card
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Troubleshooting
For more information on troubleshooting a HP Mini 110 follow the troubleshooting link.
Background and Information
The HP Mini 110, released in October of 2009, is a netbook made by Hewlett-Packard under the HP company brand. It came with a Microsoft Windows XP operating system, and, like most other netbooks, it was made without a CD or DVD drive to ensure a lightweight and compact build. These netbooks are meant to be more portable than typical laptops, and are best used for written documents, small programs and web browsing. The specific model described in this page, the troubleshooting page, and the repair guides is the Mini 110-1046NR, although many within the Mini 110-1000 series are similar. Users will be able to identify the device by the model number which can be found on the bottom of the device. it will be in the top right corner of the device (next to the battery) which lists all of the information needed to identify this device as well as distinguish it from others.
Specifications
Hardware:
- Microprocessor
- Intel Atom Processor N270
- Memory
- 1024 MB DDR2
- Video Graphics
- Intel Graphics Media Accelerator 950
- Video Memory
- 128 MB
- Hard Drive
- 160 GB
- Network Card
- Integrated 10/100 Ethernet LAN
- Display
- 10.1" LED Anti-glare display (1024x576)
- Sound
- HD Audio
- Stereo speakers
- Integrated microphone
- External Ports
- 5-in-1 integrated Digital Media reader or Secure Digital cards, MultiMedia cards,Memory Stick, Memory Stick Pro, or xD Picture cards
- 3 Universal Serial Bus (USB) 2.0
- Headphone-out/Microphone in combo jack (compatible with 3.5mm 4-conductor jack with stereo audio and mono mic)
- 1 VGA (15-pin)
- 1 RJ -45 (LAN)
- Dimensions
- 10.3 in (L) x 6.77 in (D) x 1.04-1.29 in (H)
- Weight
- 2.57 lbs
- Power
- 30W AC Adapter, 3-Cell Lithium-Ion battery
Software:
- Operating System
- Genuine Windows XP Home Edition with Service Pack 3 (1)
- Multimedia
- Adobe Reader
- eBay
- HP Document Viewer
- Windows Media Player 11
- Adobe Flash Player
- HP Games Powered by Wild Tangent
- Pandora Internet Radio; Snapfish
- Productivity and Finance
- HP Battery Check
- Microsoft Works 9.0; MS Office Home & Student Edition 2007 - 60Day Trial
- HP Help & Support
- HP User Guides
- HP Wireless Assistant
- HP Mobile Broadband Setup Utility
- Sun Java Virtual Machine
- Internet Solutions
- AOL (internet portal)
- MSN Toolbar
- Internet Explorer 7
