Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Troubleshooting

Track down a number of hardware problems using the HP Pavilion dv5000 Troubleshooting Guide.

Identification and Background

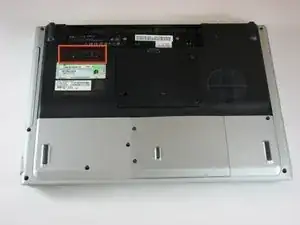

If you are unsure if this is your device, you can check the model name and number. The model name and number are both located on the back of the device.

The HP Pavilion dv5000 was released in January 2005. It comes with a 15.4" widescreen display. It is preloaded with Microsoft Windows XP Professional and has a max memory of 2048 MB. This products also offers advanced modularity and extensive multimedia support. It is considered "full-featured" because it has 3 Universal Serial Bus ports and the following components: PC Card slot, IEEE 1394 port, and Digital Media Slot.

Specifications

Processor

  • AMD Turion 64 Single-Core Mobile ML-37
  • 2 GHz

Display

  • 15.4 inches
  • 1280 x 800 pixels

Video Graphics

  • ATI RADEON® XPRESS 200M IGP graphics

Video Memory

  • 128 MB (shared)

Multimedia Drive

  • DVD Writer Dual Format (+/-R +/-RW) with Double Layer support

Sound

  • Altec Lansing® speakers
  • 3D Sound Blaster Pro compatible sound 16 bit integrated

Storage

  • 120 GB

Memory

  • 512 MB DDR 333 MHz (2 x 256 MB)

Input Power

  • 18.5 V to 19.0 V dc
  • 4.74 A or 4.9 A

Power Consumption

  • 4 W

Battery

  • 6-cell Lithium-Ion (Li-Ion) battery

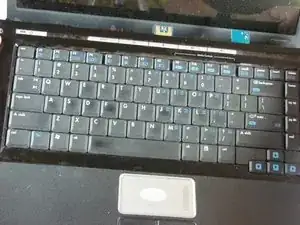

Keyboard

  • 101 key compatible keyboard

External Ports

  • 1 VGA port
  • 2 USB 2.0 ports
  • 1 RJ 11 modem connector
  • 1 RJ 45 Ethernet connector
  • S-video TV out
  • Remote control infrared port (Remote Control optional)
  • 1 Headphone-out, 1 Microphone-in port
  • Cable docking connector
