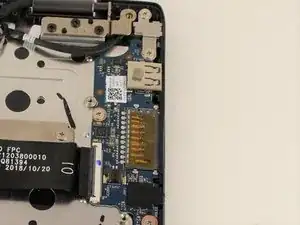

Auxiliary and USB Port
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Troubleshooting
If you are experiencing any problems with the Lenovo Flex 6-11IGM, please try referring to the troubleshooting page.
Background and Identification

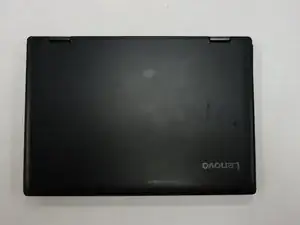

The Lenovo Flex 6 11” IGM laptop is a two-in-one touchscreen laptop released in 2018 as a part of Lenovo’s line of IdeaPad devices. It features an Intel Pentium Silver N5000 core processor, 1366x768 resolution HD display with a multiple input touchscreen interface, Integrated Intel UHD Graphics 605 chip, 4 gigabytes of onboard DDR4 RAM with 2400MHz clock speeds, and 64 gigabytes of flash storage on an eMMC drive. Peripherals include 2 Dolby stereo speakers, a 720p HD front facing camera with built-in microphone, and an array of ports including a USB 3.0 with always-on charging, USB 2.0, and USB Type-C port, HDMI port, 4-in-1 card reader (SD, SDHC, SDXC, MMC), 3.5mm I/O audio jack, and a Bluetooth 4.1 enabled 802.11ac 5 GHz band network adapter. Cosmetically, the device comes in only one color, onyx black. It weighs 2.6 lbs with a total thickness of 0.7 inches and a length and width of 11.6 and 8 inches respectively.
Specifications
General
- Feature: Convertible, Touchscreen
- Brand: Lenovo
- Operating system: Windows OS
- Screen size: 11.6 inches
- Drive capacity: 64 GB drive
- Drive type: Solid State Drive
- Product Type: Notebook - flip design
- Dimensions: 11.6 in x 8 in x 0.7 in (WxDxH)
Processor / Chipset
- Max Turbo Speed: 2.6 GHz
- Number of Cores: Dual-Core
- Cache: 4MB
- 64-bit Computing: Yes
- Features: Integrated memory controller
Memory
- Technology: DDR4 SDRAM
- Speed: 2400 MHz
Display
- LCD Backlight
- Touchscreen
- Widescreen
- Image Aspect Ratio: 16.9
- Image Brightness: 250 cd/m^2
- Features: Anti-glare, One Glass Solution
Audio and Video
- Graphics Processor: Intel UHD Graphics 600
- Camera: Yes - 720p

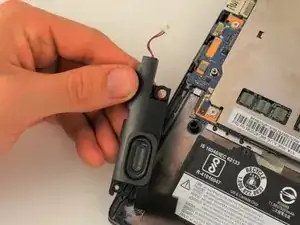

- Sound: Stereo speakers, microphone
- Compliant Standards: High Definition Audio, Dolby Audio Premium
Input
- Keyboard Layout: US

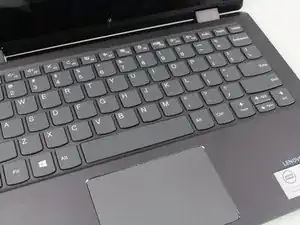

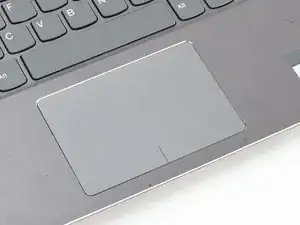

- Features: Multi-touch touchpad, buttonless touchpad
Communications
- Wireless: 802.11a/b/g/n/ac, Bluetooth 4.1
- Wireless Controller: M.2 Card

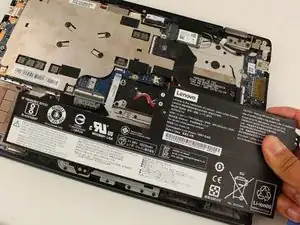

Battery
- Technology: 3-cell lithium ion
- Capacity: 36 Wh
AC Adapter
- Input: AC 120/230 V (50/60 Hz)
- Output: 45 Watt
Connections and Expansion
- Interfaces: USB 2.0 USB 3.1 Gen 1 (Always On) USB-C 3.1 Gen 1 HDMI Headphone/microphone combo jack
- Memory Card Reader: 4 in 1 (SD Card, MultiMediaCard, SDHC Card, SDXC Card)
Miscellaneous
- Color: Onyx black
- Case Material: Polycarbonate ABS
- Integrated Options: Accelerometer
- Security: Firmware Trusted Platform Module (TPM 2.0) Security Chip
- Features: Administrator password, hard drive password, power-on password
- Included Accessories: Power adapter
- Compliant Standards: RoHS
- Localization: Language: English / region: United States
Source: Google
