TroubleShooting

If you’re having difficulties with your Lenovo ThinkPad X1 Carbon 4th Gen, refer to the troubleshooting page for help.

Background and Identification

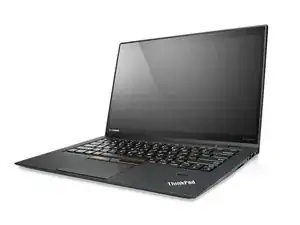

The Lenovo ThinkPad X1 Carbon 4th Gen, released in 2016, is the 4th generation of the X1 Carbon series. Compared to the last three generations, the X1 Carbon 4th Gen does not have touchscreen capabilities. However, what makes this generation stand out from its predecessors is the fingerprint press scanner in the bottom right corner and a lighter frame, making it half a pound lighter. This generation also improved its core processor to an i5 and raised the graphics. To find out more, click here.

When this model was released, it ranged from $1,142.10 - $1,533.60. It was advertised as being an excellent “business” laptop because of its sleek design, spill resistant keyboard, and extended battery life, which won it a PC Editor’s Choice award. To learn more about the pros (and the cons) of the X1 Carbon 4th Gen, visit PCmag’s website.

This generation of X1 Carbon was soon surpassed by the 5th generation in 2017 with new specs, including a change from the old rectangular charge port to a more supported USB-C connection. As of now, the Lenovo ThinkPad X1 Carbon 4th Gen is no longer available for purchase. You can find more about the X1 Carbon generations on the adam fowler IT website.

Specifications

General:

  • Manufacturer: Lenovo
  • Dimensions: 9 x 13.1 x 0.6 in.
  • Weight: 2.58 lbs

Processor:

  • CPU: Intel Core i5 (6th Gen) 6200U / 2.3 GHz
  • Cores: Dual-Core

Display:

  • LCD Backlight Technology: LED backlight
  • Resolution: 1920 x 1080 (Full HD)
  • Type: LED
  • Display Resolution: Full HD

Video & Audio:

  • Graphics Processor: Intel HD Graphics 520
  • Sound: Stereo Speakers

Battery

  • Capacity: 52Wh
  • Cells: 4 Cells
  • Technology: Lithium Polymer
  • Run Time: Up to 11 hours

Adapter

  • Input: AC 120/230 V (50/60 Hz)
  • Output: 65 Watts

Cache Memory

  • Installed Size: 3MB

Memory

  • RAM: 8 GB
  • Speed: 1866 MHz
  • Hard Drive type: SSD
  • Capacity: 256 GB

Networking:

  • Wireless network internet controller: Intel Dual Band Wireless-AC 8260
  • Ethernet controllers: Intel I219-V

Source: Cnet Lenovo Thinkpad X1 Carbon 4th Gen Specs

Additional Information

Lenovo Parts Removal and Replacement Videos

Lenovo Support Page

Lenovo Thinkpad X1 Carbon 4th Gen Review
