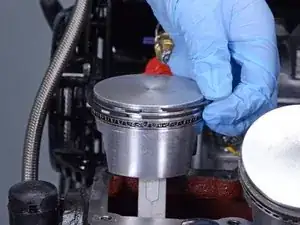

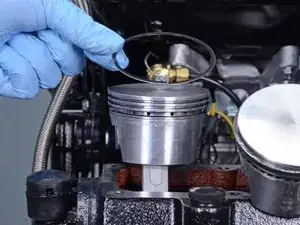

Piston Rings Removal
Background and Identification

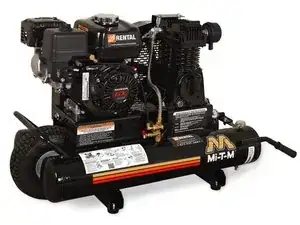

The Mi-T-M Air Compressor AM1-PH65-08HD is a portable 6.5-horsepower wheelbarrow-style air compressor. The model AM1-PH65-08HD is a gasoline-powered air compressor that includes a 12-inch flywheel for extra cooling and longer life. The compressor also includes lifting handles for portability. It operates at a rate of 13.2 cubic feet per minute at 100 pounds per square inch of pressure. The air compressor has an air delivery rate of 14.2 cubic feet per minute at 40 pounds per square inch of pressure. The AM1-PH65-08HD model can run up to a pressure of 125 pounds per square inch.
The AM1-PH65-08HD model is powered by a 196 cubic centimeter Honda engine. Honda recommends using unleaded 86 octane or higher fuel for this engine. It includes two pressure gauges for tank and discharge pressures. The air compressor has a pneumatic idle down function to conserve fuel when air is not needed. It also features a large industrial intake filter. The AM1-PH65-08HD model includes an 8-gallon compressor tank and a fuel tank capacity of 0.95 gallons.
The AM1-PH65-08HD model is a cast iron splash lubricated compressor pump that includes a powder-coated frame and tanks. The air compressor weighs 175 pounds. The air compressor is nearly all-black but includes one yellow, orange, and red stripe across the compressor’s side. The manufacturer name, “Mi-T-M,” is printed in white font on the left of the three colored stripes.
Technical Specifications
Dimensions:
- Product Depth (in.): 44.5
- Product Height (in.): 27
- Product Width (in.): 18.5
Details:
- Air Delivery SCFM @ 40PSI: 14.2
- Air Delivery SCFM @ 90PSI: 13.9
- Application Use: Blow Cleaning, Bolting/Wrenching, Brad Nailing/Stapling, Finish Nailing, Framing Nailing, Inflation, Roof Nailing
- Compressor Tank Capacity (Gal.): 8 Gal.
- Compressor Type: Framing & Roofing
- Compressor Volume Rating: Quiet
- Compressor/Air Tool Features: Handle, Tank Pressure Gauge
- Decibel Rating (Outdoor): 71 dBA
- Fuel Tank Capacity (gallons): .95
- Horsepower (hp): 6.5 hp
- Included: No additional components or accessories are included
- Lubrication Type: Oil-Lubricated
- Maximum Pressure (psi): 125
- Portable: Yes
- Power Source: Gas
- Power Type: Gas
- Product Weight (lb.): 175lb
- Pump Type: Single Stage Cast Iron Splash Lubricated with Large Intake Filter
- Stage Count: Single Stage
- Tank Material: Steel
- Tank Pressure Gauge: Yes
- Tank Style: Wheelbarrow
- Tools Product Type: Air Compressor
