Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Background

The Motorola Moto G Stylus 5G released to compete in the market of midrange smartphones, with an edge on performance and up-to-date design, including a higher refresh rate as compared to competing models. The construction is similar to the Edge models. With the stylus included, the phone appeals to a wider range of uses with a premium, passive design.

Identification

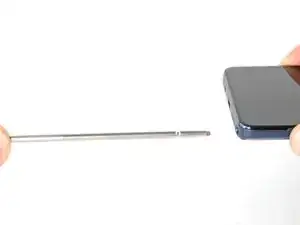

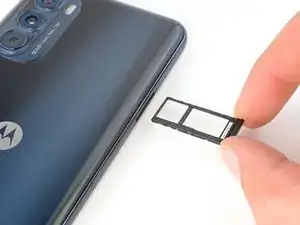

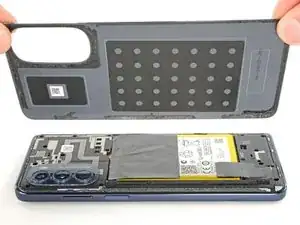

The Moto G Stylus 5G can be identified by its model number: XT2215. The non-5G version has model number XT2211. The relatively thick bezels and hole-punch cutout for the front-facing camera distinguish the Moto G Stylus 5G from its siblings. The back panel matches the camera bezel in a two-piece design, with a triple camera layout and flash unit in the bezel. The fingerprint reader can be found together with the home button on the right side of the device, just under the volume buttons. The SIM reader is on the left of the device. Lastly, the stylus itself is accessed via a push eject button in the left of the bottom edge of the frame.

Technical Specifications

Release Date: 22 April 2022

Body:

  • Dimensions and weight: 168.9 x 75.8 x 9.3 mm (6.65 x 2.98 x 0.37 in), 215 g (7.58 oz)
  • Build: Glass front, plastic back, plastic frame
  • SIM: Nano-SIM, water-repellent

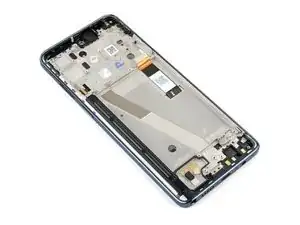

Display:

  • IPS LCD, 120Hz
  • Size: 6.8 inches, 109.8 cm2 (~85.8% screen-to-body ratio)
  • Resolution: 1080 x 2460 pixels (~395 ppi density)

Platform:

  • OS: Android 12, planned upgrade to Android 13
  • Chipset: Qualcomm SM6375 Snapdragon 695 5G (6 nm)
  • CPU: Octa-core (2x2.2 GHz Kryo 660 Gold & 6x1.7 GHz Kryo 660 Silver)
  • GPU: Adreno 619

Memory:

  • Card Slot: microSDXC (dedicated slot)
  • Internal:
    • 128GB 6GB RAM
    • 256GB 8GB RAM

Cameras:

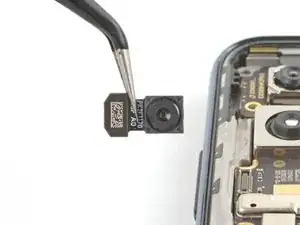

  • Triple Rear:
    • Wide: 50 MP, f/1.9, 26mm, 0.64µm, PDAF, OIS
    • Ultrawide8 MP, f/2.2, 118˚, 1/4.0, 1.12µm
    • Depth: 2 MP, f/2.4
    • Features: LED Flash, HDR, panorama
    • Video: 1080p@30/60fps; gyro-EIS

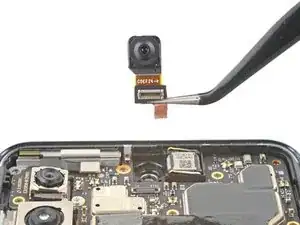

  • Front-Facing:
    • 16 MP, f/2.2, (wide), 1/3.06", 1.0µm
    • Features: HDR
    • Video: 1080p@30fps

Sound:

  • Loudspeaker
  • 3.5 mm jack

Communications:

  • WLAN: Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, hotspot
  • Bluetooth: 5.1, A2DP, LE
  • Positioning: GPS, GLONASS, BDS, GALILEO
  • USB: USB Type-C 2.0

Features:

  • Sensors:
    • Fingerprint (side-mounted)
    • Accelerometer
    • Gyroscope
    • Proximity
  • NFC
  • FM radio

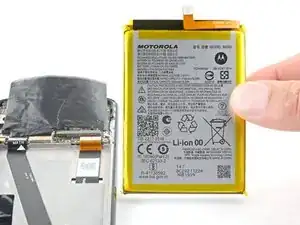

Battery:

  • Li-Po 5000 mAh
  • non-removable
  • Quick Charge 3.0
