Identification and Background

The Palm m105 was released March 6, 2001 as part of the Palm 100 series to be an entry level PDA that many users could feel comfortable in using. The m105 uses Motorola EZ Dragonball processor and has 8 megabytes of Ram. Also the m105 comes with a cradle to sit in rather than a cord. The comes with Palm Desktop software that allows the owner to sync the device with a home computer to store and update additional information.

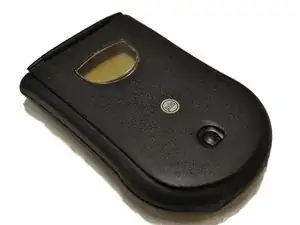

The Palm m105 is typically a very durable device because of its plastic screen and case which is able withstand drops and falls better than glass screens. Additionally, a hinged plastic cover hangs over the devices screen when not being used for added protection.

Troubleshooting

Technical Specifications

Manufacturer

  • Palm

Part Number

  • P80701U

Product Type

  • Handheld

Operating System

  • Palm OS 3.5

Display Type

  • Monochrome

Display Resolution

  • 160 x 160

Color Depth

  • 2-bit (4 gray levels)

Memory

  • RAM 8 MB / ROM 2 MB

Processor

  • Motorola MC68EZ328

Processor Clock Speed

  • 16 MHz

Audio

  • None

Input Device Type

  • Touch-screen

Expansion Slot(s)

  • None

Interfaces

  • 1 x Serial - RS-232 - 9 pin D-Sub (DB-9),
  • 1 x Infrared - IrDA
  • Connectivity Devices Docking cradle

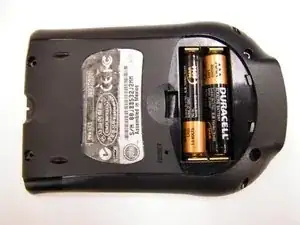

Battery Installed

  • Qty (Max Supported): 2 (installed) / 2 (max)
  • Technology / Form Factor: Alkaline - AAA type
  • Run Time (Up To): 2 month(s)

Included Accessories

  • Stylus

Localization

  • English / United States

Dimensions & Weight

  • Width 3.1 in
  • Depth 0.7 in
  • Height 4.6 in
  • Weight 4.4 oz
