Toshiba Satellite S55t-C5225 Repair

Diagnose problems with your Toshiba Satellite S55t-C5225 laptop using the troubleshooting page.

The Toshiba Satellite S55t-C5225 is an all-purpose entertainment laptop with a brushed metal finish on the exterior and a black plastic bottom which was first released in 2015. With a 15.6in diagonal widescreen TruBrite TFT display at 1920 x 1080 native resolution (FHD), the screen can support 1080p which is ideal for multiple tasks. The current operating system is Windows 10 home. This laptop has built-in harman/kardon® stereo speakers with DTS Sound technology. The device also features an optical disk drive, a front facing webcam, and is Bluetooth capable. This laptop is also RoHS compatible, ENERGY STAR qualified, and EPEAT Gold Rated.

The Toshiba Software and Utilities that are already installed are TOSHIBAecoUtilityTM,  TOSHIBAMediaPlayerbysMedioTruelink+, TOSHIBADisplayUtility, TOSHIBAServiceStation, TOSHIBAPasswordUtility,  TOSHIBAPCHealthMonitor, TOSHIBAResolution+UpconvertTechnologyforMediaPlayer.

• Dimension: 14.96 x 10.23 x 0.93in  or 380x259x23.5mm ( W x D x H Front/H Rear)
• Weight: 5.18 lbs/2.35 kgs

• 1TB (5400 RPM) Serial ATA hard disk drive

• HD webcam
• TruTalkTM dual microphones with beam forming technology
• 10/100/1000 Ethernet
• Intel® Dual-Band Wireless-AC 726510
• Bluetooth 4.1

• 12GB DDR3L 1600 MHz (not user upgradeable)

• 15.6 in diagonal widescreen TruBrite TFT display at 1920 x 1080 native resolution (FHD)
• Touchscreen
• LED backlit
• 16:9 aspect ratio

• Video
  • HDMI with 4K Ultra HD output capacity
• Audio
  • Headphone/Microphone jack
• Data
  • 3 USB
  • RJ-45 LAN port

• 4cell/45Wh Lithium Ion battery pack (non user replaceable battery)
• 45W (19V 3.42A) 100-240V/50-60Hz AC Adapter


Source: Detailed Specifications

Manual and Specification Guides

Description of Specifications

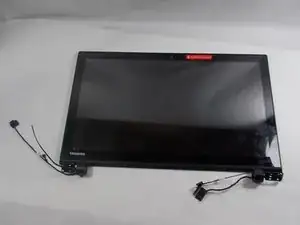

Screen Replacement
