Einleitung

Use this guide to remove or replace the screen on your Motorola Edge 5G UW (2022).

This guide is for the official Motorola replacement part.

Note: Follow this guide to replace a screen that's pre-installed in a new frame (a.k.a. chassis). You'll need to transplant all of your phone's internals to the new screen. If you are replacing the display panel only, follow this guide.

For your safety, discharge the battery below 25% before disassembling your phone. This reduces the risk of a dangerous thermal event if the battery is accidentally damaged during the repair. If your battery is swollen, take appropriate precautions.

You'll need replacement adhesive to complete this repair. If you bought an iFixit Fix Kit it will include extra Camera Cover Adhesive, Fingerprint Sensor Cable Adhesive, and Antenna Bracket Adhesive that are not necessary for this specific model.

  1. EgArEFAXSliUMaBn
    EgArEFAXSliUMaBn
    KUTLquFQq1adFp2P
    mZELpgygmJvh1U3I
    • Insert a SIM eject tool, bit, or straightened paperclip into the SIM card tray hole on the bottom edge of the phone.

    • Press the SIM eject tool into the sim card tray hole to eject the SIM card tray.

    • Use your fingers or tweezers to remove the SIM card tray.

  2. xLsBXZmv3ogqEF6j
    • Completely power off your phone before you begin.

    • Heat an iOpener and apply it to the back cover's left edge for two minutes.

    • A hair dryer, heat gun, or hot plate may also be used, but be careful not to overheat the phone—the back cover and internal battery are both susceptible to heat damage.

  3. LxWYySKdhlpcRZDA
    LxWYySKdhlpcRZDA
    YIWiKq4niHBDpDAf
    POUjAwPLS55yqcUu
    • Apply a suction cup to the back of the phone, as close to the bottom left corner as possible.

    • Pull up on the suction cup with a strong, steady force to create a gap between the back cover and the midframe on the left edge.

    • Depending on the age of your phone, this may be difficult. If you're having trouble, apply more heat to the edge and try again.

    • Insert an opening pick into the gap.

  4. 6w2XkMWTYUkLx2oP
    6w2XkMWTYUkLx2oP
    XPDlT6yX2kSsaVeX
    • Slide the pick along the left edge of the phone to slice the adhesive securing the back cover to the frame.

    • Leave the pick inserted in the top left corner to prevent the adhesive from resealing.

  5. qBSEvvlSyjfhD5fw
    • Apply a heated iOpener to the back cover's top edge for two minutes.

  6. 51hOuBRIw5bbPJV6
    51hOuBRIw5bbPJV6
    lxGuUCk5DJaSI2AV
    • Rotate the pick around the top left corner to slice the adhesive.

  7. mTSNowaDZoqOYLsn
    mTSNowaDZoqOYLsn
    cEJxNRq3lyjHErUP
    • Slide the pick along the top edge to slice the adhesive.

    • Leave the opening pick inserted in the top right corner to prevent the adhesive from resealing.

  8. NYbRlOVptKIU3vHf
    • Apply a heated iOpener to the back cover's right edge for two minutes.

  9. vQVMtqMGTRFEeQVb
    vQVMtqMGTRFEeQVb
    YYCUq2sKV6sUxywe
    • Rotate the pick around the top right corner to slice the adhesive.

  10. AXCyIkQUnDq5QrR2
    AXCyIkQUnDq5QrR2
    Y5yUEXYKXfytqMil
    • Slide the pick along the right edge to slice the adhesive.

    • Leave the pick inserted in the bottom right corner to prevent the adhesive from resealing.

  11. KHbEQJ51uAKLKcWL
    • Apply a heated iOpener to the back cover's bottom edge for two minutes.

  12. ixNvqXlOTImv5Fyg
    ixNvqXlOTImv5Fyg
    CN1j44mVUpCIG1XE
    • Rotate the pick around the bottom right corner to slice the adhesive.

  13. HS1J6HJmiqSEAY2l
    HS1J6HJmiqSEAY2l
    ESbXuVFOCoH5ykQZ
    • Slide the pick along the bottom edge to slice the adhesive.

  14. FhLQ3xTuJSOMV3IV
    FhLQ3xTuJSOMV3IV
    PLPBCbvXFP2txS3m
    • There's a significant amount of adhesive to the right of the cameras that secures the back cover to the motherboard cover.

    • Apply a heated iOpener to the right of the cameras for two minutes.

  15. Cx3crU3YPxvZiHot
    Cx3crU3YPxvZiHot
    yaHxkPGLpX1yH6MN
    • Insert an opening pick between the back cover and motherboard cover on the top right edge.

    • Gently pull up on the back cover while sliding the opening pick back and forth along the right side of the cameras to slice the adhesive.

    • The back cover should detach from the phone at this point.

  16. DyXbbpLyDeEbYvaI
    DyXbbpLyDeEbYvaI
    P3HyJtxCJpqPgaLA
    • Lift the back cover from the phone and remove it.

    • If the back cover is still stuck to the midframe, slide an opening pick around the edges of the phone until the cover separates completely.

    • During reassembly:

    • This is a good point to test your phone's functionality before sealing it up. Use this guide to run a hardware test. Be sure to power your phone back down completely before you continue working.

    • Follow this guide to replace the back cover adhesive.

  17. WCMDBHiAholvTAig
    WCMDBHiAholvTAig
    UWAOkc6UgRvqXebL
    • Use a Phillips screwdriver to remove the 13 4 mm screws securing the motherboard cover.

  18. fTIILBkKHvPJ6VSh
    fTIILBkKHvPJ6VSh
    aj6WfRTIZxN4qSdF
    • Insert a spudger between the motherboard cover and midframe on the top right edge of the phone.

    • Pry up with the spudger to release the clips securing the motherboard cover.

    • During reassembly, press down around the perimeter of the motherboard cover to engage the clips.

  19. YDUYqCuFiBFhyHBW
    YDUYqCuFiBFhyHBW
    c5nJj4YpAVSIg3RI
    I5EyRoSIWhRruWtR
    • Gently pull the motherboard cover up and away from the phone and remove it.

    • Don't pull quickly or forcefully, as the heat spreader very loosely secures the motherboard cover to the battery.

  20. YS4GUnKfhoto6GRl
    YS4GUnKfhoto6GRl
    CPL1rGFHi3SQpcHm
    • Use the pointed end of a spudger to pry up and disconnect the battery's press connector.

    • To re-attach press connectors like this one, carefully align and press down on one side until it clicks into place, then repeat on the other side. Don't press down on the middle. If the connector is misaligned, the pins can bend, causing permanent damage.

  21. 6wgxbqv16DVWxCKU
    6wgxbqv16DVWxCKU
    PsdjEuDNwcyVvnNf
    • Use a Phillips screwdriver to remove the six 4 mm screws that secure the daughterboard cover.

  22. PO1DUvFpjKHlpBr4
    PO1DUvFpjKHlpBr4
    PmZdDoOXJBJmY2AC
    JmDBCnC5FEdVKShw
    • Use your fingers or tweezers to lift the daughterboard cover up and towards the top edge of the phone to remove it.

    • Be gentle when lifting, as a small heat spreader loosely connects the daughterboard cover to the battery.

  23. BV6g3ZjmPN66yhAU
    BV6g3ZjmPN66yhAU
    2tQB2AO5R1V3iyJF
    • Use the pointed end of a spudger to pry up and disconnect the interconnect cable's press connector from the daughterboard.

  24. 6OhPuV1dWhJWSBiX
    6OhPuV1dWhJWSBiX
    dtNaimrEMfCuiKav
    • Take care not to puncture the battery with your tweezers—a punctured battery may leak dangerous chemicals or cause a fire.

    • Use tweezers to grip the top and bottom of the white antenna's coaxial connector, as close to the connector head as possible.

    • Lift straight up to disconnect the cable.

    • Be gentle when disconnecting the cable, as it's very easy to tear the socket from the daughterboard.

    • To re-attach coaxial connectors like this one, hold the connectors in place and gently press them straight down with your finger or the pointed end of a spudger.

  25. CGOAUh3O5jjiWMZl
    CGOAUh3O5jjiWMZl
    JBQVj1PoPZHxoPm5
    • Use tweezers or your fingers to gently pull the white antenna cable up and towards the right edge of the phone until it's freed from the clip securing it to the daughterboard.

    • During reassembly, make sure to put the cable back in its clip on the daughterboard.

  26. tUjEuOxblBm6nwhQ
    tUjEuOxblBm6nwhQ
    tRT4DSlMu3Q2QPMV
    MDVZxbosYORxD52Q
    • Use the same technique to disconnect and loosen the blue and black antenna cables.

    • During reassembly, make sure to put the cables back in their clips on the daughterboard.

  27. Tps1TjgaVErlNWbI
    Tps1TjgaVErlNWbI
    gUiHajkrLfamUAFk
    • Use a Phillips screwdriver to remove the 3 mm screw securing the daughterboard.

  28. 3N5NJFGnnQHl3rRG
    3N5NJFGnnQHl3rRG
    uvpyUqbsLPhDmT4F
    • Before you perform this step, be sure you’ve ejected the SIM tray.

    • Use your fingers or tweezers to pull the daughterboard up and towards the top edge to remove it.

    • During reassembly, make sure that all of the cables that connect to the daughterboard (interconnect and antennas) are out of they way so they don't get stuck under the daughterboard when it's reinserted.

  29. YdnGwHqTqVBLieWg
    • Apply a few drops of high-concentration (90% or higher) isopropyl alcohol under the vibration motor and its contact pad to loosen the adhesive securing them.

    • Let the isopropyl alcohol soak for one minute.

  30. QaTKwXiisZAEBJwg
    QaTKwXiisZAEBJwg
    3iSb6uIVQ3PCNW6p
    QVSkyfcq4tx1LsMH
    • Insert the pointed end of a spudger in the gap between the vibration motor and frame.

    • Pry up with the spudger to dislodge the vibration motor.

    • The vibration motor's flex cable is very fragile. Work slowly to prevent tearing the cable.

    • Use tweezers or your fingers to remove the vibration motor.

    • If there's any alcohol remaining, use a lint-free cloth to wipe it up or allow the alcohol to dry off before installing a new vibration motor.

    • Apply new adhesive to your vibration motor before installing it in the frame.

  31. ZI3BLTDF51JVT3ER
    ZI3BLTDF51JVT3ER
    iTdjwVtAowZDgPP3
    • Use the pointed end of a spudger to pry up and disconnect the display's press connector.

  32. WOtysoqgVeNBViTY
    WOtysoqgVeNBViTY
    HEkISU2pggaj11YF
    • Use the pointed end of a spudger to pry up and disconnect the 5G mmWave antenna's press connector.

  33. LGhkY1rHAoCtnALP
    LGhkY1rHAoCtnALP
    YyFf3sarthBH5PDV
    • Use the pointed end of a spudger to pry up and disconnect the interconnect cable's press connector from the motherboard.

  34. oWHh4oTCbcTtgbhy
    oWHh4oTCbcTtgbhy
    AFxHQnaMhxgdrjnI
    • Use the pointed end of a spudger to pry up and disconnect the button assembly cable's press connector.

  35. NtUeINV2NoZLYNyP
    NtUeINV2NoZLYNyP
    oPObN2jdDRjrAIhL
    • Take care not to puncture the battery with your tweezers—a punctured battery may leak dangerous chemicals or cause a fire.

    • Use tweezers to grip the top and bottom of the blue antenna's coaxial connector, as close to the connector head as possible.

    • Lift straight up to disconnect the cable.

    • Be gentle when disconnecting the cable, as it's very easy to tear the socket from the motherboard.

    • During reassembly, make sure to put the cable back in its clip on the motherboard.

    • To re-attach coaxial connectors like this one hold the connectors in place and gently press them straight down with your finger or the pointed end of a spudger.

  36. 4PYxFxAYqmALu6li
    4PYxFxAYqmALu6li
    jrfNlquh4tULTGty
    BwTMg13NOSxQtvVL
    • Use the same method from the previous antenna cable to disconnect the white and black antenna cables.

    • During reassembly, make sure to put the cables back in their clips on the motherboard.

  37. IcMQvA3IxCMfArHc
    IcMQvA3IxCMfArHc
    qiW4tslWcBnmxUu6
    • Use the pointed end of a spudger to bend the 5G mmWave antenna cable out of the way to access the screw securing the motherboard.

  38. JUvlhED5UcZZ1ESA
    JUvlhED5UcZZ1ESA
    FEmAU1AObxvN4X4J
    • Use a Phillips screwdriver to remove the 3 mm screw securing the motherboard.

  39. lgEeldUH52uQ4GMZ
    lgEeldUH52uQ4GMZ
    2KRePEhS1gZqXQDP
    • Insert the pointed end of a spudger between the midframe and motherboard in the opening near the coaxial connectors.

    • Gently pry up with the spudger to release the motherboard from the midframe.

  40. 4uqHCN6OyOyUgQWI
    4uqHCN6OyOyUgQWI
    iPB4JujgWXG1Vj1b
    • Remove the motherboard from the phone.

    • During reassembly, make sure that all of the cables that connect to the motherboard (interconnect, battery, antennas, display, and button assembly) are out of they way so they don't get stuck under the motherboard when it's reinserted.

  41. oqFQVFhmsitFeiML
    oqFQVFhmsitFeiML
    hWMScabiRDtQkxSk
    • Clean off the old thermal paste from the midframe and motherboard using isopropyl alcohol and a microfiber cloth. Apply new thermal paste before reassembly.

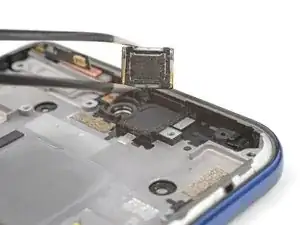

  42. tZRgZWxM23VIL4PP
    tZRgZWxM23VIL4PP
    CGxIYnaA2L6oolNP
    BTgXUmvRdbdPHRMG

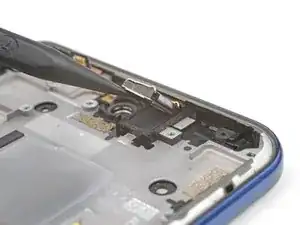

    • Note the orientation of the earpiece speaker. During reassembly it must be reinserted the same way or the speaker won't work.

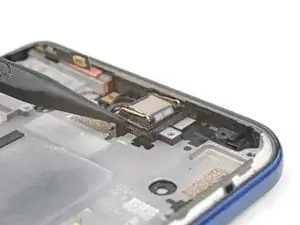

    • Insert the pointed end of a spudger between the earpiece speaker and its housing

    • Pry up with the spudger to dislodge the speaker.

    • A small amount of adhesive secures the speaker.

    • Use your fingers or tweezers to remove the speaker.

    • Before reinstalling the speaker on the new screen assembly, ensure that the speaker has no mesh on the back of it.

    • Before reinserting the speaker, ensure that the raised ends of the speaker's contacts are on the right. If they aren't the speaker won't work.

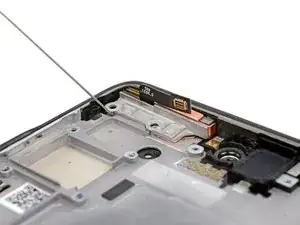

  43. 3d5ZhrLajKWyUjCr
    3d5ZhrLajKWyUjCr
    OMLTP1NYHaLtecwV

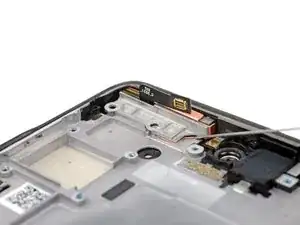

    • Apply a few drops of high-concentration (90% or higher) isopropyl alcohol under the 5G mmWave antenna.

    • Wait one minute for the isopropyl alcohol to penetrate the adhesive.

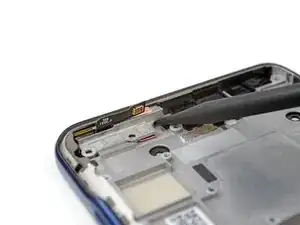

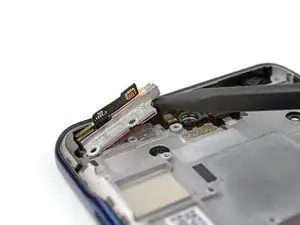

  44. fUNT545YeFKYObiH
    fUNT545YeFKYObiH
    RE6PLVkdCkXJwqXd
    tOAtjLBTQQqSJeZF

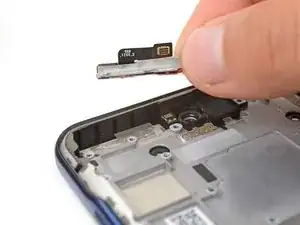

    • Insert the pointed end of a spudger under the 5G mmWave antenna on the side closest to the center of the phone.

    • Pry up with the spudger to detach the antenna.

    • It may take significant force to detach the antenna. If the antenna isn't moving, apply a few more drops of isopropyl alcohol and try again.

    • Remove the antenna.

    • During reassembly, remove the old adhesive from the bracket and frame, then apply new adhesive.

  45. HPUA2XwyDL5SxWhZ
    HPUA2XwyDL5SxWhZ
    wUVXALQxHvZT1Aq3
    LVJOyUCjbNL4seWV

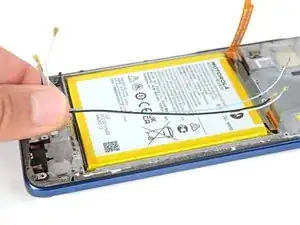

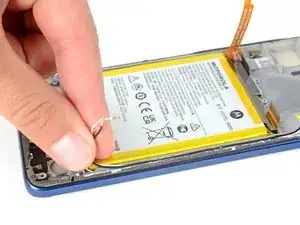

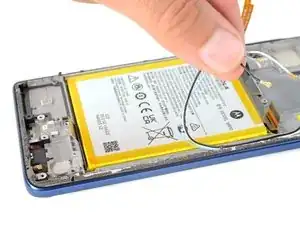

    • Pull the black, white, and blue antenna cables up and out of the phone.

    • During reassembly, be sure to put the antennas back in their groove on the right edge of the frame.

  46. BbCHEmALStLZHRvR
    BbCHEmALStLZHRvR
    TCxmW3OVTXqXSrXw

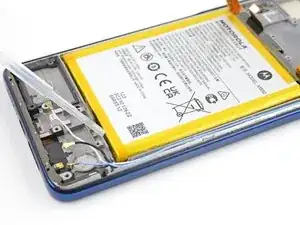

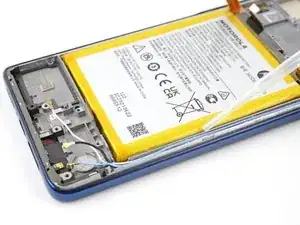

    • Apply a few drops of high-concentration (90% or higher) isopropyl alcohol to the gaps along the battery's edges.

    • Tilt the device as you apply alcohol to help it flow under the battery.

    • Wait one minute to allow the isopropyl alcohol to penetrate the adhesive.

    • Only apply a few drops initially and apply more as necessary.

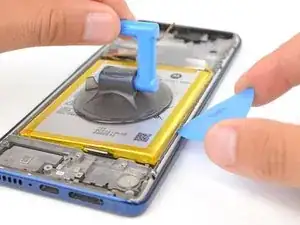

  47. 2gtxBPNGshc6KQPG
    2gtxBPNGshc6KQPG
    u6GxSkdHNfm12sIx
    L3UFkfNgrhUcVVbY
    • Take care not to puncture or bend the battery during the removal process—a punctured or bent battery may leak dangerous chemicals or cause a fire.

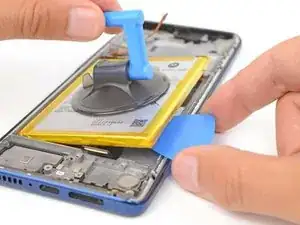

    • Apply a suction cup to the battery.

    • Pull up on the suction cup with strong, steady force to separate the battery from the frame.

    • If the battery doesn't budge, apply a few more drops of isopropyl alcohol, wait one minute, and try again.

    • Insert an opening pick into the gap.

    • Continue to pull up on the suction cup with a strong, steady force while sliding the opening pick back and forth to slice the adhesive.

    • Continue this process until the battery separates from the midframe.

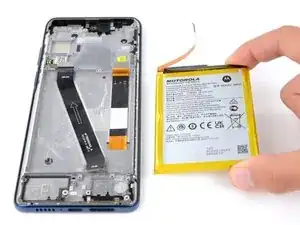

  48. OLL2ruiISJyWS3CG
    OLL2ruiISJyWS3CG
    Q5BqcQGT1rTuidCJ

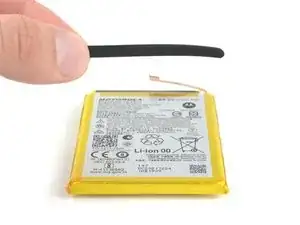

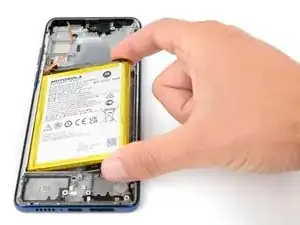

    • Remove the battery from the midframe.

    • Don't reuse the battery if it has been deformed or damaged, as doing so is a potential safety hazard. Replace it with a new battery.

    • Follow this guide to replace the battery adhesive.

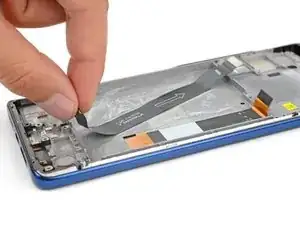

  49. pKW1wCPRj4x2GwKG
    pKW1wCPRj4x2GwKG
    S3lHKFMqoHqgIYbB
    LCj3luuLg1gkSKok

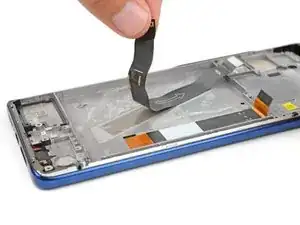

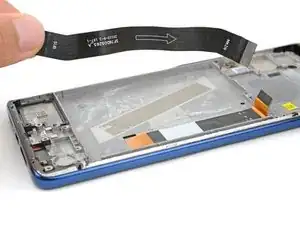

    • Use your fingers to peel the board ribbon cable from the midframe.

  50. 3ZekIbRhFTkFZamy
    3ZekIbRhFTkFZamy
    23SZj3dxGlp5NQgg
    mR4XIOmdpeJmaHC4

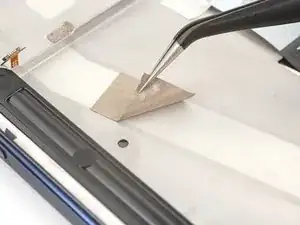

    • This step shows how to replace the conductive adhesive for the board cable during reassembly. If your frame has this adhesive preinstalled, skip this step.

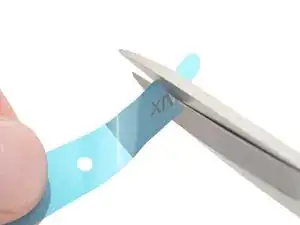

    • If necessary, cut the adhesive blocks to fit into contours of the cable channel. The adhesive doesn't need fit the contours perfectly.

    • Peel the adhesive blocks from the adhesive sheet.

    • Place the adhesives in the board cable channel. Space them evenly through the channel.

    • Peel any remaining plastic liners to expose the adhesive.

  51. DgwxCmEivNBKxe5t

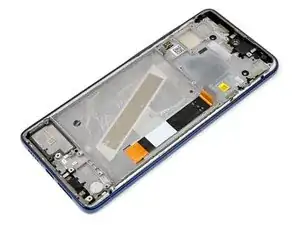

    • You are now left with the screen assembly.

  52. oJegC3iL3XSyYNB4
    oJegC3iL3XSyYNB4
    PpwvgmhUNOuVQlrH
    X3u6cmYtBaeiW21T
    • If you're reusing your old battery, skip this step.

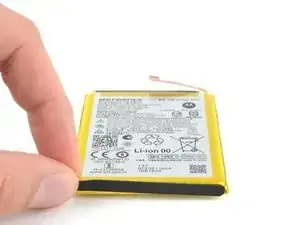

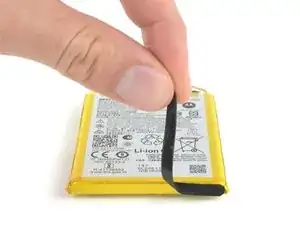

    • Use tweezers or your fingers to remove the foam strip from the battery's bottom edge.

    • Before installing your new battery, apply the foam strip to it.

Abschluss

Compare your new replacement part to the original part—be sure to transfer remaining components and remove adhesive backings from the new part before installing.

To reassemble your device, follow the instructions in reverse order.

You'll need replacement adhesive to complete this repair. If you bought an iFixit Fix Kit it will include extra Camera Cover Adhesive, Fingerprint Sensor Cable Adhesive, and Antenna Bracket Adhesive that are not necessary for this specific model.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.

Spencer Day

Mitglied seit: 14/09/22

17445 Reputation

0 Kommentare
