Reparaturanleitungen

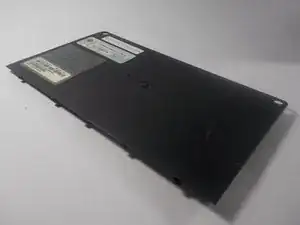

Back Panel

Back Panel

 en

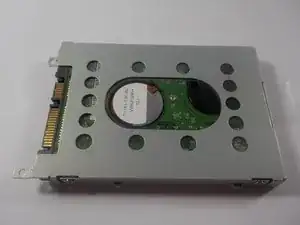

Hard Drive

Hard Drive

 en

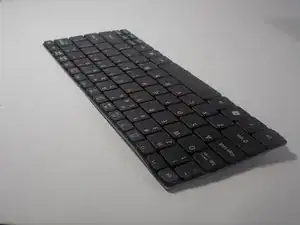

Keyboard

Keyboard

 en

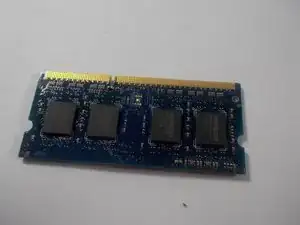

RAM

RAM

 en

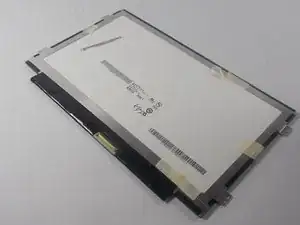

Screen

Screen

 en

Demontageanleitungen

Acer Aspire One D255E - Removing the Back Access Panel

Acer Aspire One D255E - Removing the Back Access Panel

 en

Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Troubleshooting

For more information regarding common issues related to the Acer Aspire One D225E, please refer to the troubleshooting page at Acer Aspire One D225e Troubleshooting

Tools

Kreuzschlitzschraubendreher #00

[verlinktes Produkt fehlt oder ist deaktiviert: IF145-000-1]

Recommended Tool Kit:

[verlinktes Produkt fehlt oder ist deaktiviert: IF145-047-1]

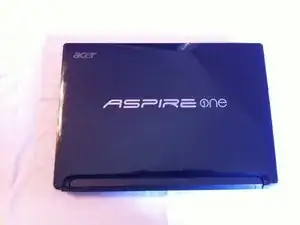

Background and Identification

Weighing in at only 2.76 pounds, the netbook features an extremely sleek and lightweight design that is built with plenty of power underneath. The netbook comes with an Intel Atom N455 central processing unit that is capable of delivering speeds of up to 1.66 GHz. with 1GB of random access memory. The graphics unit is a GMA 3150 graphics processor, allowing for better displays and sharper images. The display of the monitor comes in at an impressive 1024 x 600 resolution and includes an LED backlight and aspect ratio of the screen is 16:9.

The hard drive moves at 5400 rotations per minute, allowing for fast loading times. It includes an integrated webcam holstering 1.3 Megapixels that captures screenshots of resolutions 1280 x 1024 or 640x480. There is no optical drive but it makes up for this with its very slim and compact design and fast wireless connectivity supporting LAN, given emphasis on cloud computing. The D225e features a 3-cell lithium ion battery that is capable of receiving 8 hours of web browsing during its full charge.

Other interfaces include a 2-in-1 SD Card or MultiMediaCard reader, as well as 3 USB 2.0 ports, a VGA port, Headphone Output, Microphone Input, and Local Area Network (Ethernet) port. Purchasing a new version of the computer comes with a preloaded version of Microsoft Office, including the entire Office 2010 Suite (Word, Excel, Powerpoint, etc.). The model is preloaded with the Windows 7 Stater OS and can be upgraded to Windows 7 Ultimate Season Pack 2 (Windows 10 upgrade is not recommended).

It is an excellent, fast, and very portable netbook that is suitable for almost any on the go computing job.

Technical Specifications

  • Manufacturer:
    • Acer
  • Type
    • Netbook
  • Processor
    • Intel Atom N455 / 1.66 GHz
    • L2 - 512 KB Cache
    • 64-bit computing
    • Hyper-Threading Technology
  • RAM
    • 1 GB Default Size
  • 2GB Max Supported size
    • DDR3 SDRAM
    • SO-DIMM
    • 1 Slot only
  • Hard Drive
    • 5400 Rotations per Minute
  • 250 GB
    • Upgrade-able
  • Audio/Video
  • Intel GMA 3150 Graphics Processor
    • Dynamic Video Memory Technology 4.0
    • Integrated Web Cam - 1.3 MegaPixels (1280 x 1024 capture resolution)
    • Speaker Output
    • Headphone Input
  • Input
    • Multi-gesture TouchPad
    • Keyboard
  • Optical Storage:
    • None
  • Battery
    • 6-Cell Lithium Ion
    • Up to 8 hours Web-Browsing
  • Connections/Expansions
    • 3 x USB 2.0
    • VGA
    • Headphone output
    • Microphone input
    • LAN
    • 2-in-1 Card Reader(MultiMediaCard)
  • Dimensions:
    • 10.2 in width
    • 7.3 in depth
    • 0.9 in height
  • Operating System:
    • Windows 7 Starter Edition
  • Board:
  • Intel NM10 Express
  • Software Included:
    • Windows 7 Starter Edition
    • Microsoft Office 2010
  • Networking
  • Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
    • Acer InviLink Nplify wireless NIC
  • Miscellaneous:
  • ENERGY STAR Qualified
    • Direct Sound audio output
    • Greenpeace policy rating (Nov 2011) 2.9
