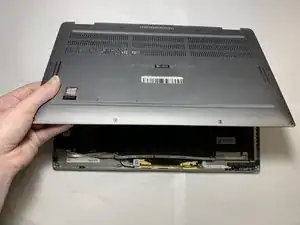

Base Panel
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Trouble Shooting
If you are having problems with your Dell Latitude 9410 2-in-1, take a look at the troubleshooting page.
Background and Identification
The Dell Latitude 9410 2-in-1 laptop measures 14.89 mm x 319.77 mm x 199.9 mm (HWD) and weighs 1.36 kg. The aluminum chassis is matte grey. It includes one front-facing infrared camera with CMOS sensor technology. This laptop includes a fingerprint reader that is 5.25 mm x 6.9 mm in size, and a touchpad with NFC.
Some useful features that this laptop includes are USB 3.2, USB Type-C, HDMI 2.0, and the Corning Gorilla Glass. The USB 3.2 port has higher transfer rates, increased multilane operations, new power management features, full data transfers, and compatibility with USB 3.1/3.0 and USB 2.0. The USB Power Delivery connection allows you to charge mobile device, and even the laptop itself with a portable battery pack.
Technical Specifications
Display:
- Type: FHD
- Luminance: 300 Nits
- Native resolution: 1920 x 1080
- Power consumption (maximum): 1.80 W
- Touch option: Yes
Storage:
(Can support)
- M.2 2230, 128 GB, Gen 3 PCIe x4, NVMe, Class 35 SSD
- M.2 2230, 256 GB, Gen 3 PCIe x4, NVMe, Class 35 SSD
- M.2 2230, 512 GB, Gen 3 PCIe x4, NVMe, Class 35 SSD
- M.2 2230, 512 GB, Gen 3 PCIe x4, NVMe, Class 35 SSD
- M.2 2230, 1 TB, Gen 3 PCIe x4, NVMe, Class 35 SSD
- M.2 2230, 256 GB, Gen 3 PCIe x4, NVMe Class 35 Self-Encrypting SSD
- M.2 2280, 256 GB, Gen 3 PCIe x4, NVMe, Class 40 SSD
- M.2 2280, 512 GB, Gen 3 PCIe x4, NVMe, Class 40 SSD
- M.2 2280, 1 TB, Gen 3 PCIe x4, NVMe, Class 40 SSD
- M.2 2280, 2 TB, Gen 3 PCIe x4, NVMe, Class 40 SSD
- M.2 2280, 512 GB, Gen 3 PCIe x4, NVMe, Class 40 Self-Encrypting SSD
Processor:
(Can support)
- 10th Generation Intel Core i5-10210U
- 10th Generation Intel Core i5-10310U
- 10th Generation Intel Core i7-10610U
- 10th Generation Intel Core i7-10810U
Memory:
- Slots: On board
- Type: LPDDR3
- Speed: 2133 MHz
- Maximum memory: 16 GB
- Minimum memory: 8 GB
- Configurations supported:
- 8 GB, LPDDR3 SDRAM, 2133 MHz, on board
- 8 GB, LPDDR3 SDRAM, 2133 MHz, on board
Graphics and Video:
- Controller: Intel UHD Graphics
- External display support: One HDMI 2.0
- Memory size: Shared system memory
Battery:
- 4-cell lithium-ion 52 WHr with ExpressCharge
External Ports:
- USB:
- 2 USB 3.2 1 Gen 1 Type-A ports with PowerShare
- 1 USB 3.2 Gen 2 Type-C port with Power Delivery/Thunderbolt 3
- 1 USB 3.2 Gen 2 Type-C port with Thunderbolt 3
- Audio: 1 Universal Audio Jack
- Video: 1 HDMI 2.0
- Media card reader: uSD 4.0
- Docking port: Thunderbolt
- Power adapter port: 4.50 m x 2.90 mm DC-in
- Security: Wedge-shaped security lock
Internal Ports:
- M.2:
- 1 M.2 2280 PICe x 4
- 1 M.2 2230 PICe x 4
Dimensions:
- Height:
- Front: 0.34 inches (8.53 mm)
- Rear: 0.59 inches (14.89 mm)
- Width: 12.59 inches (319.77 mm)
- Depth: 7.87 inches (199.90 mm)
- Weight: 3.0 lb (1.36 kg)
