Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Troubleshooting

If you are having an issues with the HP Envy X2-15-C001Dx, try using the troubleshooting page to help you identify and fix your laptop.

Background and Identification

The HP Envy X2-15-C001Dx is an all in one convertible PC released in 2014. The Envy is easily distinguished by its removeable keyboard and sleek 1920x1080p resolution touchscreen. It has two USB ports, HDMI and even an SSD card slot. It also has a standard audio jack and a Beats speaker system. The keyboard and tablet itself are actually connected via Bluetooth so there are no wires needed for a connection. The operating system that comes with your X2 is Windows 8.1, which is powered by their Core M-70 Processor that can deal with most of your common uses for the device. The laptop can be identified by its beats symbol under the left speaker along with the name Hewlett Packard on the top left corner of the screen. It has a removable keyboard that has a dual purpose of being a screen protector that has a cloth backing that says Hewlett Packard in the center of it.

Technical Specifications

Display:

  • 15.6 inch diagonal
  • Full HD touchscreen Display

Memory:

  • On-board 8GB 1600MHz DDR3L SDRAM

Sound:

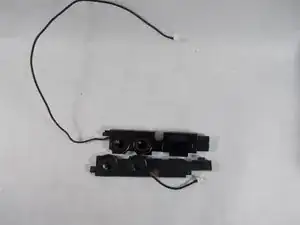

  • BeatsAudio quad speakers

Keyboard:

  • Wireless keyboard compatibility
  • Keyboard deck

Power:

  • 45W AC adapter

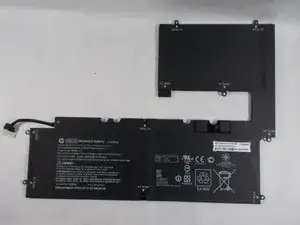

  • 3-cell 50WHr 4.45Ah lithium-ion battery

External Ports:

  • 1 HDMI port
  • 1 Headphone jack port
  • charging port

Weight:

  • 5.42 lb

Dimensions:

  • 0.8 in (H) x 16.31 in (W) x 9.58in (D)

Wireless connectivity:

  • 2x2 802.11ac WLAN
  • Bluetooth connection

Microprocessor:

  • 11.1GHz Intel Core M-70 Processor
  • Can boost up to 2.6 GHz because of Turbo Boost Technology

Video Graphics:

  • Intel HD graphics 5300
  • 3898 MB is the total graphics memory

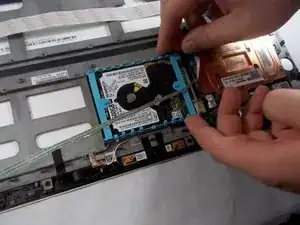

Hard Drive:

  • 500 GB Hard Drive

Battery:

  • 4.45 Ah lithium-ion battery
  • With 45 W AC adapter

Source:

support.hp.com HP Envy X2-15-C001Dx Specifications

Additional Information

HP Support Manual

HP ENVY X2-15-C001Dx User Guide

HP Envy x2 Maintenance Guide
