Identification and Background

This HP Chromebook 14-c015dx is one of a line of Chromebooks released by various companies. This particular Chromebook was released in November of 2013 by HP. This device runs off of a 1.1 GHz Intel Celeron Processor 847 and comes equipped with a 4GB DDR3 SDRAM. The hard drive is a 16GB solid-state drive. This device is primarily used for internet browsing and document creation. Most if not all documents created on this device are stored on the google cloud due to the minimal amount of space in the device itself.

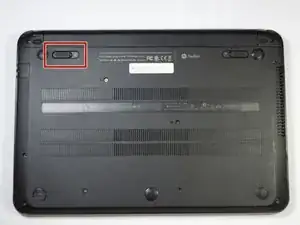

You can identify and distinguish this laptop from others by the plastic information strip on the bottom. On this information strip, about 3 inches in from the left will have small text reading: "Model: 14 - c015dx".

Troubleshooting

Track down problems with your Chromebook 14 here on our HP Pavilion 14-c015dx Chromebook troubleshooting page

Specifications

Microprocessor

  • 1.1 GHz Intel Celeron Processor 847

Microprocessor cache

  • 2MB L3 Cache

Memory

  • 4GB DDR3 SDRAM (1 DIMM)

Memory Max

  • Maximum supported = 4GB

Memory Slots

  • 1 user accessible

Video Graphics

  • Intel HD graphics

Display

  • 14.0-inch diagonal HD BrightView LED-blacklit display (1355 x 768)

Solid-State Drive

  • 16GB solid-state drive

Network Card

  • 10/100BASE-T Ethernet LAN (RJ-45 connector)

Wireless Connectivity

  • 2x2 802.11a/b/g/n WLAN

Sound

  • Altec Lansing dual speakers

Keyboard

  • Full-size island-style keyboard

Pointing device

  • Touchpad supporting multi-touch gestures with on/off button

External Ports

  • Multi-format digital media card reader for Secure Digital and Mu
  • 3 Universal Serial Bus (USB) 2.0
  • 1 HDMI
  • 1 RJ-45 (LAN)
  • 1 Headphone-out/microphone-in combo jack

Dimensions

  • 0.81 in (min H)/ 0.83 in (max H) x 13.66 in (W) x 9.37 in (D)

Weight

  • 3.96 lbs

Power

  • 65W AC adapter
  • 4-Cell 37WHr 2.55Ah lithium-ion battery

ID Mech Description

  • HP TrueVision HD Webcam with integrated digital microphone

Additional Information

HP Support and Specification Page

CNET specifications

Laptop Inventory: Parts

Stripped Screws

  • If you have any stripped screws, you can consult this iFixit Page for multiple options to see how to remove a stripped screw.
