Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Troubleshooting
For diagnosing common problems with the Lenovo Legion Y530-15ICH, check out our troubleshooting page here.
Background and Identification

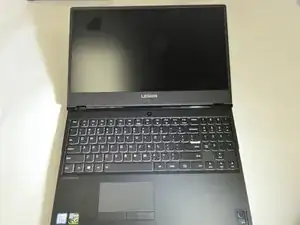

The Lenovo Legion Y530-15ICH gaming laptop with 8th Gen Intel® Core™ mobile processors was released in September of 2018. The Lenovo has a full size, backlit keyboard and a thin, matte black, minimalist design for portability and practicality. This powerful gaming laptop weighs 5.1 lbs. It is equipped with 256GB PCle SSD storage and DDR4 memory. The display contains over 2 million pixels and the speedy processor allows for over a 60Hz refresh rate.
This laptop is described as a combination of the 2017 model, the Lenovo Legion Y520-15IKBN, and the Lenovo ThinkPad P52. In 2018, the Lenovo Legion Y530-15ICH was rated to have one of the best mixes of performance and design in a gaming laptop. Lenovo currently has 5 Y series versions of the Legion laptop available.
Technical Specifications
Processor
- 8th Generation Intel® Core™ i5-8300H Processor
Display
- 15.6” FHD (1920 x 1080) IPS anti-glare 300 nits 60 Hz refresh
Graphics
- NVIDIA® GeForce® GTX 1060 6 GB
Storage

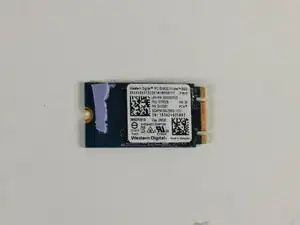

- 256GB SSD PCIe (Supports up to 512GB)
Memory

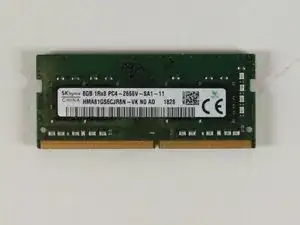

- 8GB DDR4 2666 MHz (Supports up to 32GB)
Ports
- 3 USB 3.1 Type-A
- USB 3.1 Type-C
- Mini DisplayPort 1.4
- HDMI 2.0
- RJ-45
- Audio combo jack
- Kensington® Lock slot
