Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Troubleshooting

For a list of common problems, visit Toshiba Satellite A215 S4697 Troubleshooting

Identification and Background

The Satellite A215-S4697 is part of the Satellite A215 series, released by Toshiba in 2007. Each model in the series is a variation of the AMD Turion64 X2 CPU. The A215 series was sold as a multimedia notebook with a large 15.4” glossy screen, large hard drives, a card reader and a webcam.

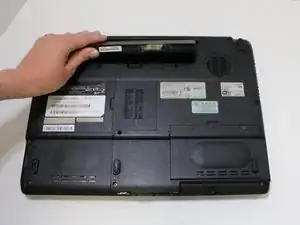

To identify your specific model, turn over the laptop so that the writing on the bottom is right side up. A white label on the left should read "Satellite A215-S4697."

If not, this is not your page!

Device Specifications

  • CPU AMD Turion 64 X2 TL-52 1.6GHz
  • GPU ATI Radeon X1200 IGP
  • Display 15.4" WXGA TruBrite LCD
  • Optical Drive DVD Super Multi (+/-R double layer)
  • Hard Drive 160GB (5400RPM)
  • Memory 1GB DDR2
  • Video Memory 128MB-319MB (Shared)
  • Wireless LAN 802.11b/g
  • Wired LAN 10/100Mbps
  • Modem 56k
  • USB 2.0 (3x)
  • Card Slot 1 x ExpressCard slot (ExpressCard/34 and Express Card/54)
  • External Device Port 4 x USB, 1 x IEEE 1394
  • Video Port 1 x VGA, 1 x S-Video TV-out
  • Audio Ports 1 x Microphone jack, 1 x Headphone jack
  • Dimensions (WxDxH) 14.2" x 10.5" x 1.32-1.55"
  • Weight (lbs.) 6.3 lbs.
  • OS Windows Vista Home Premium
