CMOS Battery
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Troubleshooting Page

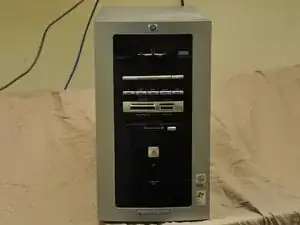

HP Media Center 876x Troubleshooting
Product Hardware Specifications
Processor
Intel Pentium 4 4.24 GHz Hyper-Threading Processor
800 MHz Front-Side Processor
Socket mPGA478
Motherboard
ASUS P4SD

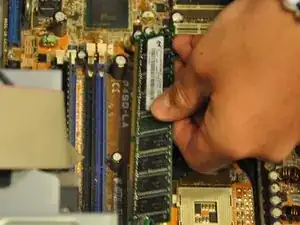

Memory
Stock product includes two 256 MB dual-inline memory modules
Motherboard accepts DDR400/PC3200, DDR333/PC2700, or DDR266/PC2100 Dimms
Dual Channel supported only when identical pairs are used
Motherboard contains four memory sockets in two pairs (sockets 1:3, and 2:4)
Upgradeable to a maximum of 4GB (Maximum of 1GB Dimm per slot)
Motherboard requires a minimum of one 64MB module

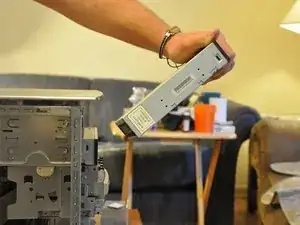

Drives
3.5 inch, 1.44 MB floppy drive
120GB, 5400 rpm, Ultra-IDE hard drive
16x DVD drive
4x DVD+R/RW Drive
Drive Bays
Two 5.25 drive bays for optical drives (both in use)
Two 3.5 drive bays for hard drives (both in use)
One 3.5 drive bay for a floppy drive (in use)
Modem
Lucent Win Modem (PCI LT K56flex Data Fax Modem)
Network
On-board RealTek 8101L 10/100 Ethernet
Audio
On-board audio capable of Dolby 5.1. Ships in 2 channel mode

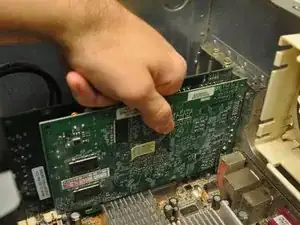

Video
GeForce FX 5200 with 128MB memory, 8X AGP, and S-Video and DVI out
Television
TV tuner card (supports stereo sound, does not support HDTV)
Memory Card Reader
6-in-1 card reader with four slots that supports the following card types:
Compact Flash I or II
Memory Stick
Microdrive
MultiMedia
Secure Digital
SmartMedia
External Communication Ports
Two PS/2 ports (one keyboard, and one mouse)
Serial (1294) port
EPP/ECP Parallel port
Six USB 2.0/1.1 ports (two in front and four in back)
Two FireWire (1394) ports (one in front and one in back)
RJ45 network interface port
RJ11 connector (on the modem) with an extra connector for a telephone
Expansion Slots
Three PCI slots (two in use, one open)
One AGP slot (in use)
Two serial ATA connectors
Power
200 watt (max) power supply for ATX style motherboards
Input Devices
HP PS/2 Media Center keyboard with multimedia controls
HP PS/2 optical scrolling mouse
Remote control with USB infrared receiver
Product Software Specifications
Operating System
Microsoft Windows XP Media Center Edition
Software BIOS
Phoenix - Award
