Troubleshooting

Track down a number of hardware problems using the PowerBook G4 Aluminum 17" troubleshooting guide.

Upgrades

There are a number of components in the PowerBook G4 Aluminum 17" 1.67 Ghz High-Res that can be cost effectively upgraded.

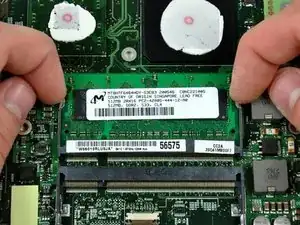

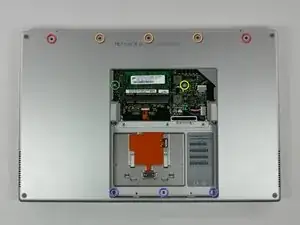

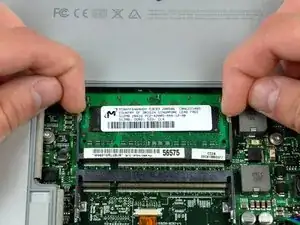

  • Memory: RAM increases speed and performance of applications. Upgrading RAM is easy and requires minimal disassembly. The 1.67 GHz High-Res requires PC2-4200 RAM. We offer different sizes, from 512 MB to 1 GB.

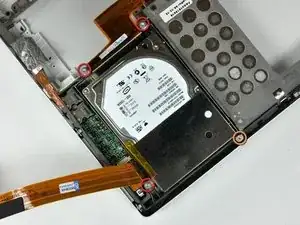

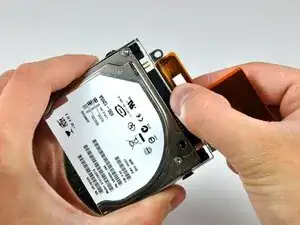

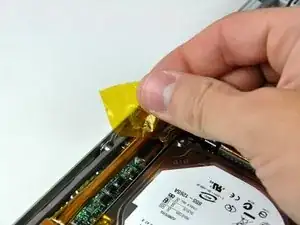

  • Hard Drive: There are two factors to consider when upgrading your hard drive. The most obvious upgrade is total amount of space. However, disk speed also significantly contributes to performance. Your Aluminum 17" 1.67 GHz High-Res uses hard drives with an ATA connector, ranging from 2 to 320 GB. Browse our hard drives to find what works best for you. You can use our free guides to painlessly install your new drive.

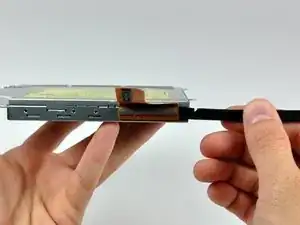

  • Optical Drive: The optical drive can be upgraded fairly easily, and you can upgrade to an SuperDrive. The SuperDrive will allow you to read CDs/DVDs and burn CD-R, CD-RW, and DVD-R discs.

Identification and Background

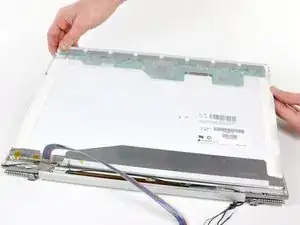

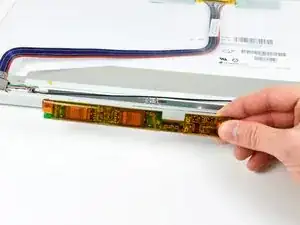

Released in October 2005, the G4 Aluminum 17" 1.67 GHz High-Res came equipped with ATI Mobility Radeon 9700 graphics standard. Features included a standard SuperDrive, a DVI port, and both FireWire 400 and Firewire 800 ports. The LCD used by the 17" PowerBook G4 Al is the same used as in the 17" iMac of that era, but with a thinner backlight.

Use the laptop identification system to help you identify your machine. PowerBooks tend to look very similar, and it's important to know which machine you have before ordering any replacement parts.
