Toshiba Satellite L655D-S5095 Repair

For more information regarding common troubleshooting problems check out the Toshiba Satellite L655D S5096 troubleshooting page.

In order to determine if this is the same model as your laptop, flip your laptop over so you can see the bottom. Look for a sticker on the bottom of your laptop with a bar code. Around the bar code, you should see "Toshiba Satellite L655D S5095" and model number "PSK2LU-02100E" listed. If you see this, then you are looking at the right page!

The Toshiba Satellite L655D S5095, model number PSK2LU-02100E, is a midgrade laptop manufactured by Toshiba and released in 2010.

This laptop is suited with 3GB DDR3 1066MHz RAM and 320GB HDD. It has an AMD Athlon™ II Dual-Core processor (2.2GHz) and a 15.6" display.

Developer: Toshiba

Operating System: Genuine Windows ® 7 Home Premium 64-bit

Processor and Graphics

VISION Technology from AMD

• AMD Athlon™ II Dual-Core Mobile Processor P340
  • 2.2 GHz, 1MB L2 Cache
• AMD M880G Chipset
• ATI Mobility Radeon™ HD 4250 Graphics with 256MB-1405MB dynamically allocated shared graphics memory

Memory

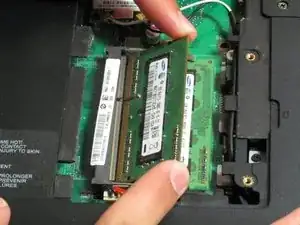

• Configured with 3GB DDR3 1066MHz (max 8GB)
• 2 main memory slots. Both slots occupied.

Storage Drive

• 320GB (5400 RPM); Serial ATA hard disk drive

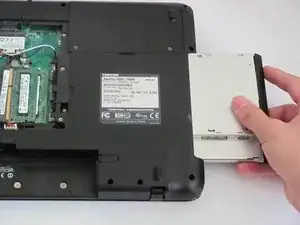

Fixed Optical Disk Drive

• DVD SuperMulti drive supporting 11 formats
  • Maximum speed and compatibility: CD-ROM (24x), CD-R (24x), CD-RW (24x), DVD-ROM (8x), DVD-R (8x), DVD-R DL (6x), DVD-RW (6x), DVD+R (8x), DVD+R DL (6x), DVD+RW (8x), DVD-RAM (5x)

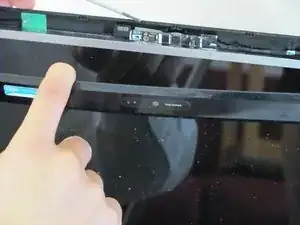

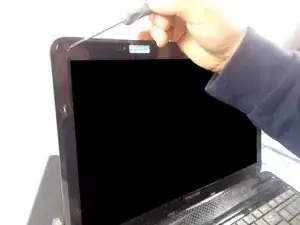

Display:

• 15.6” diagonal widescreen TruBrite ® TFT display at 1366 x 768 native resolution (HD)
  • Native support for 720p content
  • 16:9 aspect ratio
  • LED backlit

Sound:

• Built-in stereo speakers
• DOLBY ® Advanced Audio™

Input Devices:

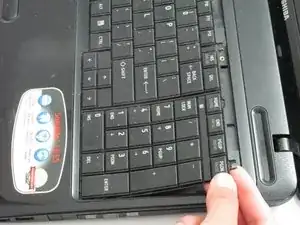

• Standard keyboard with 10-keypad (black)
• TouchPad™ pointing device with multi-touch control
• TouchPAd™ Enable/Disable

Communications:

• Webcam and microphone
• 10/100 Ethernet
• Wi-Fi® Wireless networking (802.11 b/g/n)9

Expandability:

• Memory Card Reader
  • Secure Digital, SDHC, miniSD, Memory Stick™, Memory Stick PRO™, Multi Media Card [shared slot-adapter may be required]

Ports

• Video
  • RGB
• Audio
  • Microphone input port
  • Headphone output port
• Data
  • 3 USB v2.0 ports (2 USB + 1 eSATA/USB combo)
  • RJ-45 LAN port
• Security
  • Slot for Security Lock

Physical Description

• Fusion ® Finish in Helios Black
• Dimensions (W x D x H Front/H Rear): 14.96” x 9.84” x 1.10”/1.49” without feet

• Weight: Starting at 5.48 lbs, depending upon configuration

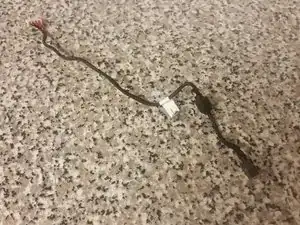

Power

• 65W (19V 3.42A) 100-240V/50-60Hz AC Adapter
  • Dimensions (W x H x D): 4.21” x 1.85” x 1.20”
  • Weight: starting at 0.55 lbs

Battery

• 6 cell/48Wh Lithium Ion battery pack,
• Battery Life Rating (measured by MobileMark™ Productivity 2007)12
  • Included 6 cell battery: 3 hours, 56 minutes

Software

• Toshiba Software and Utilities
  • TOSHIBA App PlaceSM
  • TOSHIBA Assist
  • TOSHIBA BookPlace™
  • TOSHIBA Bulletin Board
  • TOSHIBA Disc Creator
  • TOSHIBA eco Utility™
  • TOSHIBA Face Recognition
  • TOSHIBA HDD/SSD Alert
  • TOSHIBA HW Setup Utility
  • TOSHIBA Laptop Checkup
  • TOSHIBA Media Controller14
  • TOSHIBA Password Utility
  • TOSHIBA PC Health Monitor
  • TOSHIBA Recovery Disc Creator
  • TOSHIBA ReelTime
  • TOSHIBA Service Station
  • TOSHIBA Supervisor Password Utility
  • TOSHIBA Value Added Package
  • TOSHIBA Web Camera Application
• Third-party Software
  • Adobe® Acrobat® Reader
  • Google® Toolbar
  • Google® Chrome
  • Internet Explorer 8
  • Microsoft® Office Starter 201015
  • Microsoft® Windows Media Player 12
  • Microsoft® Silverlight™
  • Microsoft® Live Essentials
    • Photo Gallery
    • Messenger
    • Mail
    • Writer
    • Movie Maker
• WildTangent® Games Console
• Special Offers and Trial Software
  • Intuit® Quickbooks® Financial Center
  • KidZui™, The Internet for Kids
  • NetZero® Internet Service
  • Norton Internet Security™ 2011 (30-day trial subscription)
  • Skype®
  • Toshiba Online Backup (30-day trial subscription)

Environmental Specifications

• This product is RoHS16 compatible
• Energy Star Qualified
• EPEAT™ Gold Compliant

• Wikipedia: Toshiba Satellite Series
• Toshiba product support page
• PDF of all Toshiba Satellite L655D S5095 Specifications
• Toshiba Satellite L650 user guide
