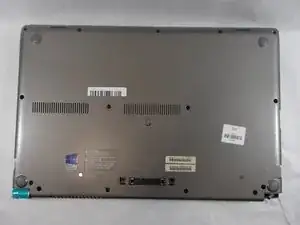

Back Panel
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Troubleshooting
If you are having issues with your Toshiba Tecra Z50-A, head over to this troubleshooting page.
Backround
The Toshiba Tecra Z50-A laptop was released in 2013 as a part of the Z50 series. The Z50-A was advertised during its time of release to be a durable laptop that is both thin and light. The Z50-A has a 4th gen Intel Core I5 and an hard drive. Other models may have either a hard drive and or a different CPU
Some of the most common issues with this device are it’s speakers having low volume, as well as the hinges coming loose after a few months of use. The Toshiba Tecra Z50-A is a laptop built best for business use. Even though it is advertised for its durability, the negative reviews left by users contradict this claim.

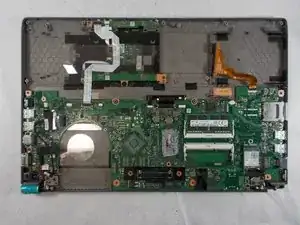

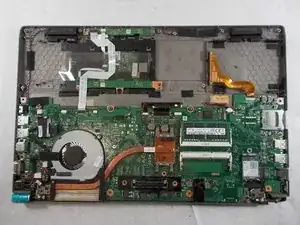

This laptop is not too difficult to repair. Once the backing has been removed it is easy to locate the parts needed for replacement or repair.
Specifications
Physical Dimensions and Weight
- 379 x 252 x 20.4 mm
- 1.8 Kg Processor
Processor
- Intel Core I5-4300
- 1.90-2.90 GHz
- 3 Mb Cache

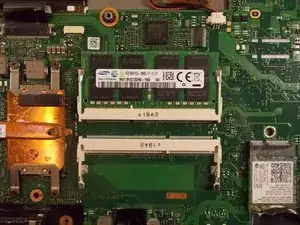

Memory
- 4 Gb DDR3 1600 MHz

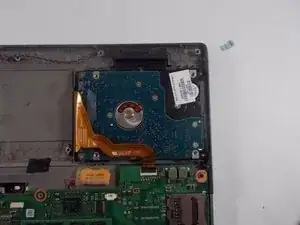

Storage
- 500 Gb
- 7200 rpm
Graphics
- Intel HD Graphics 4400
Wireless
- 802.11a, WiFi 5
Display
- 15.6 in Diagonal
- 1920-1080p
- 17 ms Response Time
Connectivity
- 1 USB 2.0
- 3 USB 3.1 Gen 1 Type-A
- Ethernet LAN (Rj-45)
- HDMI
- VGA
- Headphone Jack
- DC Power
