Lenovo ThinkPad X1 Carbon 7th Gen Repair

If you are having difficulties with the Lenovo ThinkPad X1 Carbon 7th Gen, try referring to the troubleshooting page.

The Lenovo ThinkPad X1 Carbon 7th Generation (Model number: 20R1000RUS) laptop was released in June 2019. It is the seventh generation laptop in the ThinkPad Carbon X1 series that Lenovo released in 2012 and has been updating since 2014. This laptop is ranked #1 by laptopmag.com for the best business laptops of 2020.

The laptop weighs 2.4 pounds and has a thickness of 14.9 mm. The battery lasts up to 18.3 hours and comes with Rapid Charge. It is powered by the 10th Gen Intel® Core™, has up to 16 GB of memory, and is run by a PCIe solid-state drive (SSD) delivering fast performance. There are several displays to choose from: an FHD touchscreen, an FHD panel with PrivacyGuard, or the 4K Dolby Vision™ with high dynamic range technology. With the LTE-A card and WWAN technology, the Lenovo ThinkPad X1 Carbon 7th Generation can connect to the internet without Wifi. It provides ThinkShield security features including discrete Trusted Platform Module (dTPM) to encrypt data while working in conjunction with Windows 10 security. Biometrics are utilized with a fingerprint reader or optional IR camera to log the user in.

Processor

• Up to 10th Generation Intel® Core i7 (1.10GHz, up to 4.70GHz with Turbo Boost, 6 Cores, 12MB Cache)

Operating System

• Windows 10 Pro or Windows 10 Home

Display Options

• 14" WQHD (2560 x 1440) IPS, anti-glare, 300 nits
• 14" FHD (1920 x 1080) IPS, low power, anti-glare, 400 nits
• 14" FHD (1920 x 1080) IPS, PrivacyGuard, anti-glare, 400 nits
• 14" FHD (1920 x 1080) IPS, anti-glare, touchscreen, 300 nits
• 14" UHD (3840 x 2160) IPS, glossy, Dolby Vision™ HDR 400, 500 nits

Memory

• Up to 16GB LPDDR3 2133 MHz (soldered)

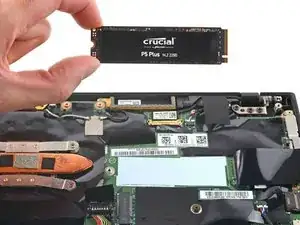

Storage

• Up to 1TB M.2 PCIe SSD

Graphics Card

• Up to Integrated Intel® UHD 620 Graphics

Battery

• Up to 18.3 hours on 51Whr

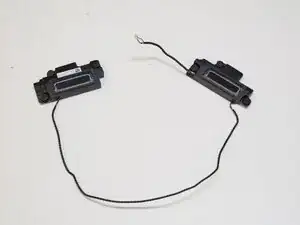

Speakers

• Dolby Atmos™ Speaker System
• 4 x 360-degree far-field microphones

Camera

• 720p HD Camera with microphone
• Optional IR camera

Weight

• Starting at 2.40 lbs (1.08 kg)

Connectivity

• Network extension for Ethernet/side mechanical docking
• WLAN: Intel® Dual-Band 9560 802.11 AC (2 x 2)
• Bluetooth® 5.0
• Optional WWAN: Fibocom L850-GL 4G LTE CAT9

Dimensions

• (H x W x D) 12.71" x 8.54" x 0.58" / 323 x 217 x 14.95 (mm)

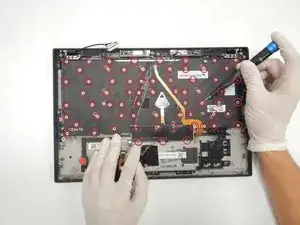

Keyboard

• Backlit with white LED lighting
