Motorola Moto G 5G (2022) Repair

The Motorola Moto G 5G fills out the market of high-tier budget phones. It's designed to host the most current conventions and tech that Motorola is bringing to 2022, with a primary focus on ample processing power, powerful battery life, and, of course, with the advantages of 5G mmWave connectivity.

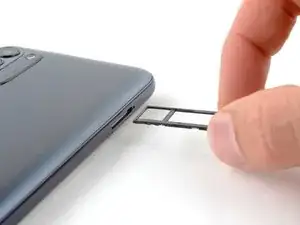

The Moto G 5G has the newer hole-punch design in the front of the LCD display, with sizeable bezels surrounding the screen. The fingerprint reader lies on the power button, right underneath the volume buttons on the right side of the device. On the left side of the device is the SIM card reader. The camera cutout is a classic triple layout, with the flash unit in the upper right of the bezel.

Release Date: 22 April 2022

Body:

• Dimensions and Weight: 165.4 x 75.8 x 9.4 mm (6.51 x 2.98 x 0.37 in), 204 g (7.20 oz)
• Build: Glass front, plastic back, plastic frame
• SIM: Nano-SIM, water-repellent

Display:

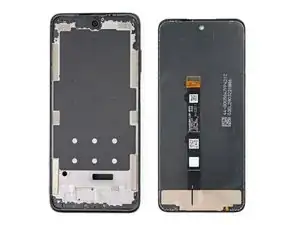

• Type: IPS LCD 90Hz
• Size: 6.5 inches, 102.0 cm² (~81.4% screen-to-body ratio)
• Resolution: 720 x 1600 pixels, 20:9 ratio (~270 ppi density)

Platform:

• OS: Android 12, planned upgrade to Android 13
• Chipset: MediaTek MT6833 Dimensity 700 (7 nm)
• CPU: Octa-core (2x2.2 GHz Cortex-A76 & 6x2.0 GHz Cortex-A55)
• GPU: Mali-G57 MC2

Memory:

• Card Slot: microSDXC (dedicated slot)
• Internal:
  • 64GB 4GB RAM
  • 256GB 6GB RAM

Cameras:

• Triple Rear:

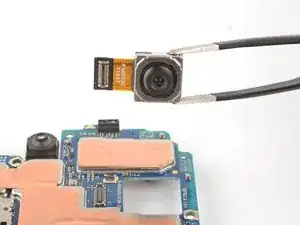

  • Wide: 50 MP, f/1.8, 26mm, 0.64µm, PDAF
  • Macro: 2 MP, f/2.4
  • Depth: 2 MP, f/2.4
  • Features: LED flash, HDR, panorama
  • Video: 1080p@30fps
• Front-Facing:
  • 13 MP, f/2.2, (wide), 1.12µm
  • Features: HDR
  • Video: 1080p@30fps

Sound:

• Loudspeaker
• 3.5 mm jack

Communications:

• WLAN: Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, hotspot
• Bluetooth: 5.1, A2DP, LE
• Positioning: GPS, GLONASS
• USB: USB Type-C 2.0

Features:

• Sensors:
  • Fingerprint (side-mounted)
  • Accelerometer
  • Gyroscope
  • Proximity
  • Compass
  • Barometer

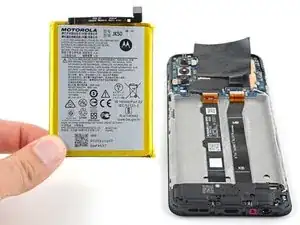

Battery: Li-Po 5000 mAh, non-removable
