PlayStation 2 Slimline SCPH-7XXXX

The Sony Playstation 2 Slimline was released in September, 2004, in time for the launch of Grand Theft Auto: San Andreas. Production of the old models (SCPH-3XXXX) stopped as soon as the smaller, thinner, quieter replacement hit the shelves (SCPH-7XXXX). Other than the noticeable size difference, Slimline models can be identified by a built-in ethernet port which previous models did not have.

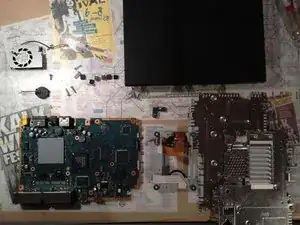

Repairing the Playstation 2 Slimline is not a difficult task. The majority of disassembly can be done with a screwdriver and the components can be easily identified and swapped out without soldering.

Looking for a place to start? Check out the troubleshooting page for solutions to common problems with the Playstation 2 Slimline.

• General
  • Manufacturer: Sony
  • Part Number: 97060
  • Model Numbers: SCPH-7XXXX
  • Media Type: DVD
  • CPU: Toshiba & Sony Emotion Engine - 294.9 MHz
  • RAM: 32MB RDRAM
  • Power Consumption: 45 Watts
• Video
  • Memory: 4MB
  • Max. Resolution Output: 1280 x 1024
  • System: NTSC
• Size
  • Width: 9.1 in
  • Depth: 6 in
  • Height: 1.1 in
  • Weight: 2 lbs
• External Connections
  • 2 x Game Controller
  • 2 x Memory Card
  • 2 x USB (4-pin, Type-A)
  • 1 x Network (RJ-45)
  • 1 x Phone Line (RJ-11)
  • 1 x Audio/Video Output
  • 1 x SPDIF Output
  • 1 x DC Power Input
