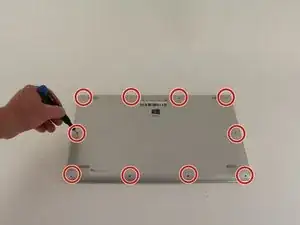

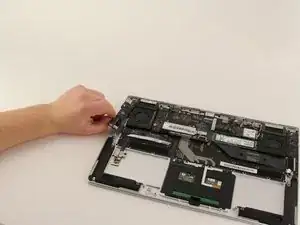

Back Panel
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Troubleshooting
For help identifying issues with your device, visit the troubleshooting page here.
Background and Identification
The Lenovo Yoga 910-13IKB (model no. 80VF007TUS) was announced by Lenovo in December 2016. It is a convertible laptop that features a 360-degree hinge and a touch screen. The base model of this laptop starts at $1100, with options for a 4K resolution screen and larger storage.
This particular model comes equipped with a 4K screen that measures an unorthodox 13.9”. Users have access to a USB 3.0 port, a USB 3.0 Type-C port, and a USB 2.0 Type-C port. In addition, the laptop features JBL audio.

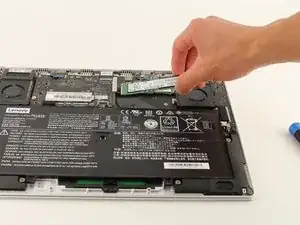

Internally, the Lenovo Yoga 910-13IKB has an Intel Core i7-7500U with integrated graphics, as well as 16GB of soldered memory. The device has an easily replaceable M.2 SSD for its storage.
Specifications
Device dimensions: 12.72” x 8.84” x 0.56”
Display size: 13.9 in.
Display resolution: 3840 x 2160 IPS
Touch support: Yes
Processor: Intel Core i7-7500U (2.7GHz, 4MB cache)
Graphics: Intel HD Graphics 620
Storage: 512GB SSD M.2 PCIe

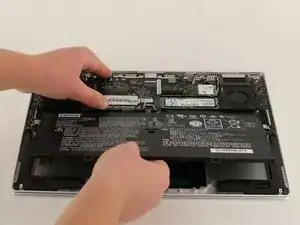

Battery: 4-cell 78Wh
Memory: 16GB 2133Mhz DDR4(soldered)
Weight: 3.04 lbs
