Background and Identification

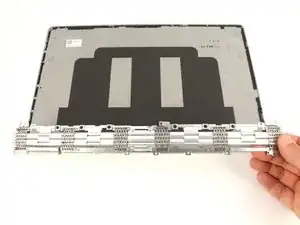

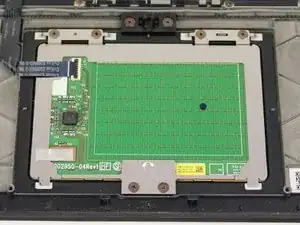

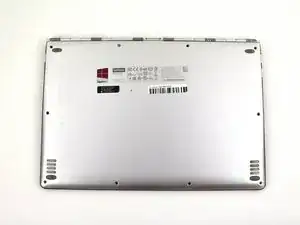

The Lenovo Yoga 900-13ISK is a 2-in-1 convertible laptop computer released by Lenovo around October of 2015. The entire screen of the device is touch sensitive and its full range hinges allow the screen to rotate 360° around the keyboard so that the device can be used as a tablet. The device has a standard laptop keyboard (no numpad), a 4.25 inch trackpad, three USB-A ports (one is used for charging), one USB-C port, and an auxiliary output for headphones. On the lower bezel of the screen are the Lenovo brand on the left, a Windows logo in the center, and a ‘900’ on the right. The word ‘Yoga’ is written on the right-hand palm rest. The model information can be found on a sticker on the bottom of the laptop. The hinge of the laptop is fairly unique, consisting of six textured, watchband-esque hinge mechanisms with smoother portions in between. The hinge has four points of movement and stretches across the entire length of the screen.

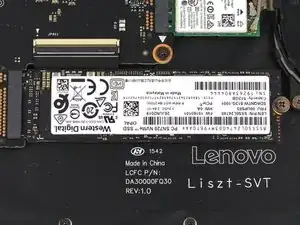

The device contains a standard removable PCIe SSD within, which is fairly simple to swap. However, there is no removable RAM for this device, so whatever you have to start is what you’re stuck with. Luckily the device ships with either 8 or 16 GB of RAM, so your device should last a while unless you are trying to do compute intensive tasks.

Technical Specifications

  • Processor: Up to 6th Generation Intel Core i7 Processor
  • Operating System: Windows 10 Home or Windows 10 Pro
  • Graphics: Integrated Intel HD Graphics
  • Memory: 8 or 16 GB LP-DDR3L
  • Webcam: 1MP 720p HD CMOS Camera
  • Storage: Up to 1 TB SSD
  • Audio: JBL Stereo Speakers with Dolby DS 1.0
  • Display: 13.3" QHD+ (3200 x 1800) IPS, 300 nits
  • Dimensions (W x D x H)(inches) : 12.75" x 8.86" x 0.59" / (mm) : 324 x 225 x 14.9
  • Weight: 2.8 lbs (1.3 kg)

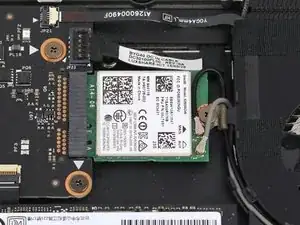

  • WLAN: WiFi 2 x 2 802.11 a/c, Bluetooth 4.0
  • Battery
    • Local Video Playback: Up to 9 hours playback with display brightness set at 200 nits
    • WiFi Browsing: Up to 10 hours browsing with display brightness set at 200 nits
  • Ports
    • 2 x USB Type A 3.0
    • 1 x USB Type C 3.0 with Video-out
    • 1 x DC-in with USB 2.0 Function
    • 4-in-1 Card Reader (SD, MMC, SDXC, SDHC)
    • Audio Combo Jack
